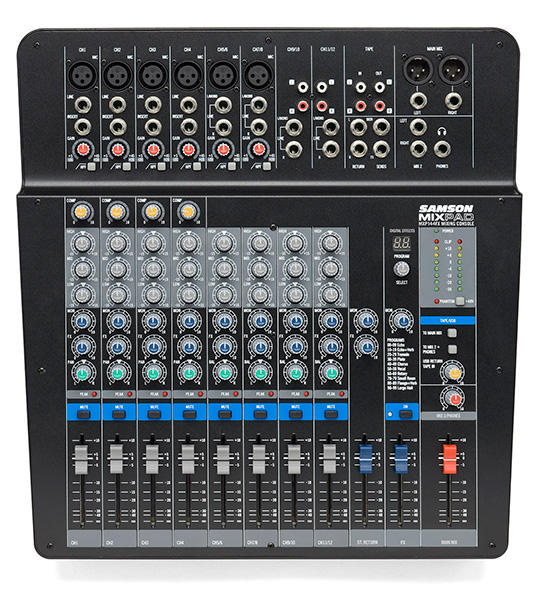

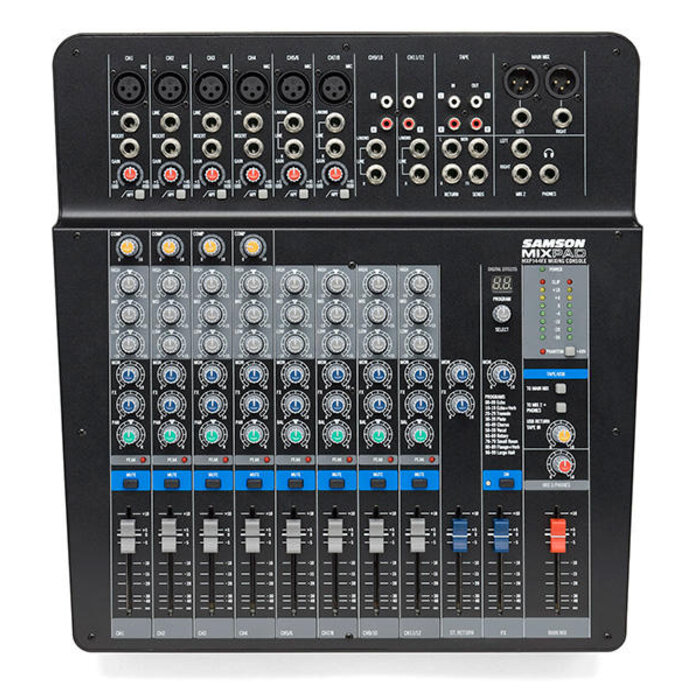

The Samson MixPad MXP144FX Analog Stereo Mixer is a 14-input mixer with USB and 100 digital effects. Six MDR mic preamps provide 3-band EQ, gain, and high-pass filtering. Four single-knob compressors and precision faders deliver smooth control. Multiple stereo inputs, TRS inserts, and assignable USB/Tape inputs allow flexible routing. 48V phantom power supports condenser microphones.
FEATURES
- Ultra-low noise, high headroom analog mixer
- Six Class A, MDR (Maximum Dynamic Range) mic preamps
- Four stereo channels with multiple input options (1/4” and RCA)
- High-integrity, bidirectional USB interface
- 100 24-bit, low-noise digital effects
- Four TRS inserts for external signal processing
- 3-band active EQ
- High-quality, precision 60mm faders
- Four single-knob, studio-quality compressors
- Pre-fader Aux Send for monitor mix
- Post-fader Aux Send for external effects
- All mic channels equipped with input Gain and high pass filters
- 48V Phantom Power for condenser microphones
- Multiple outputs: Main Mix, Mix 2, Phones and Tape
- XLR and 1/4" Main Mix outputs
- USB/Tape inputs assignable to Main Mix or Mix 2/Phones outputs
SPECIFICATIONS
| Frequency Response - Mic to Main | 20Hz~30KHz |
| Frequency Response - Line to Main | 20Hz~30KHz |
| Frequency Response - Aux Return to Main | 20Hz~30KHz |
| Frequency Response - Line to Aux Send | 20Hz~30KHz |
| T.H.D. - Mic/Line to Main (Mono Ch) | <0.03% |
| T.H.D. - Line to Main (Stereo Ch) | <0.03% |
| T.H.D. - Line to Aux Send | <0.03% |
| Equivalent Input Noise - Mic (Trim @ Min, Fader set "0") | < -90dB 20Hz~30KHz A-weighted |
| Equivalent Input Noise - Line (Trim @ Min, Fader set "0") | < -90dB 20Hz~30KHz A-weighted |
| Maximum Voltage Gain - Mic to Main (bal) | 70dB |
| Maximum Voltage Gain - Line to Main (bal, Mono Ch) | 43dB |
| Maximum Voltage Gain - Line/Tape to Main (Stereo Ch) | 33dB |
| Maximum Voltage Gain - Aux Return to Main | 25dB |
| Maximum Voltage Gain - Mic to Aux Send | 75dB |
| Maximum Voltage Gain - Line to Aux Send (Stereo Ch) | 30dB |
| Residual Noise - Main (All fader min) | -100dBu A-weighted |
| Residual Noise - Aux Send (All fader min) | -105dBu A-weighted |
| Crosstalk (@ 1 kHz w/ 30 kHz LPF) - Ch vs. Ch (Trim @ min, Fader set 0) | >75dB A-weighted |
| Crosstalk - Input vs. Output | >60dB A-weighted |
| Maximum Input Level - Mic Input (Mono Ch) | +16dBu |
| Maximum Input Level - Line Input (Mono Ch) | +40dBu |
| Input Channel Equalizer - High | ±15 dBu |
| Input Channel Equalizer - Mid | ±15 dBu |
| Input Channel Equalizer - Low | ±15 dBu |
| PEAK Indicators - Mic (Mono Ch) | +16dBu |
| PEAK Indicators - Line (Stereo Ch) | +16dBu |
| Phantom Power | 48V±3V |
| Headphone output (600 ohm load) | +20dBu |
| Internal DSP Effects | 100 presets |
| USB Bus Power | USB2.0 +5V DC 0.5A max |
| Dimensions (W x D x H) | 15.3” x 14.5” x 3.9” / 391mm x 370mm x 100mm |
| Weight | 8.3lb / 3.8kg |
