AdastraUM30 Compact 100V Mixer-Amp
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

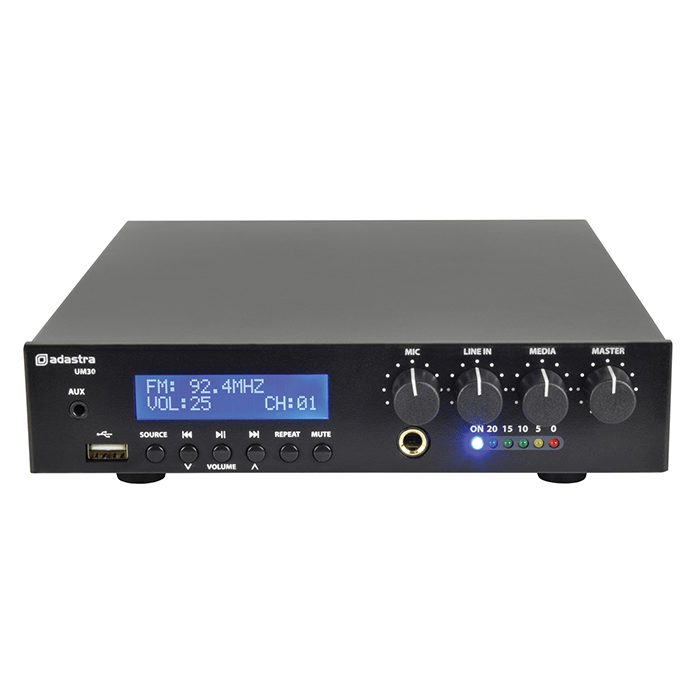

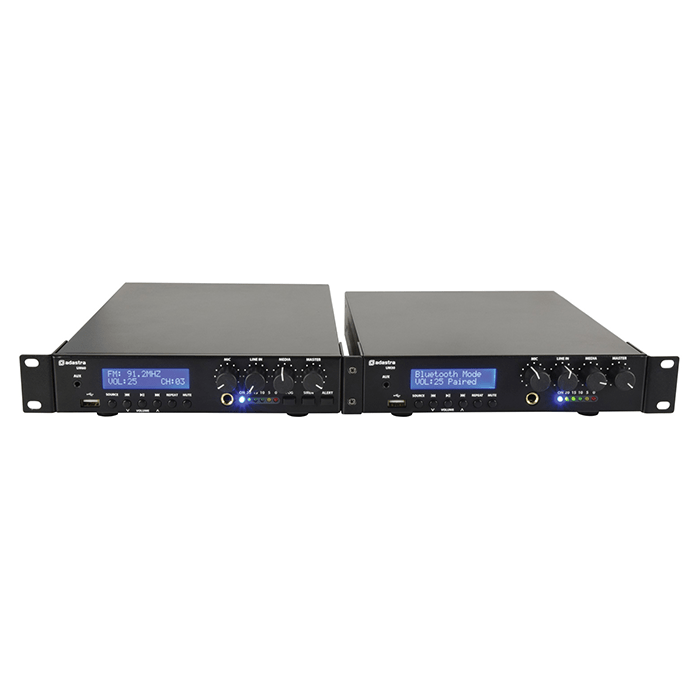

The Adastra UM30 was built as a small, 100V mixer amplifier that suits small to medium-sized PA systems. It is equipped with a microphone input, a line input, and a built-in media player with USB, FM radio, and Bluetooth. All of these can be controlled from the front using volume knobs and a master button. You can connect one set of speakers (8 ohms) to the rear screw terminals or 100V line models using them. The Class D amplifier makes the device work efficiently with little power, and Bluetooth is programmable to allow simple connections. UM30 comes with enough hardware to mount two units close together in a 1U rack. Offices, shops, and hospitality venues benefit a lot from these systems.
SPECIFICATIONS
| Weight | 2.35kg |

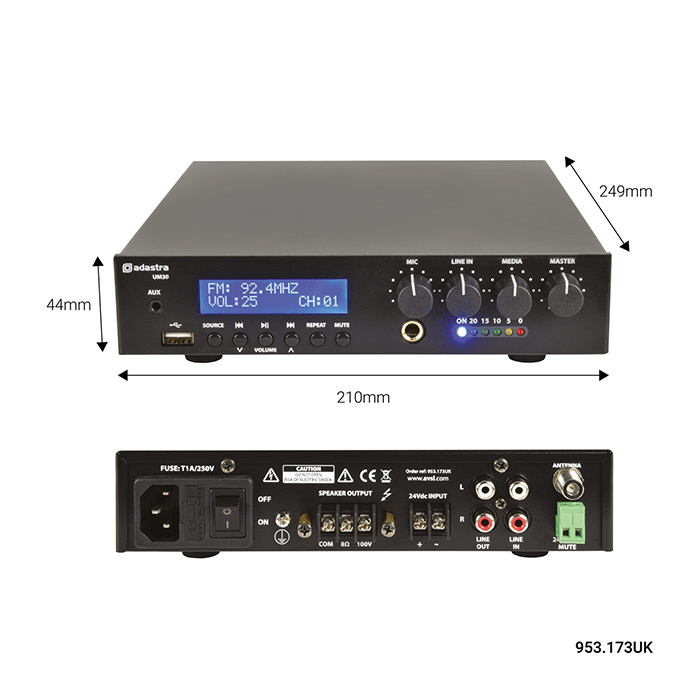

| Dimensions | 249 x 210 x 44mm |
| Alarm Output | N/A |
| Output Power : RMS | 30W |
| Power Supply | 170-264Vac, 50Hz (IEC) or 24Vdc |
| Amplifier : Construction | Class D + transformer output |
| Audio Source | Internal USB/FM/BT player |
| Bluetooth Version | 5.0 |
| Inputs | 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) |
| Line Output | 2 x RCA (mono) |
| Speaker Outputs | Screw terminals - 100V / 8 Ohms / Com |
| DC Power | 24Vdc screw terminals |
| Mute | 24V relay contacts |
| THD | <0.4% @ 1kHz |
| Input Impedance | 1k Ohms (mic/line) |
| Input Sensitivity | -10dB (line), -45dB (mic) |
| SNR | 80dB (line), 75dB (mic) |
| Frequency Response | 100Hz - 18kHz |
