BossAcoustic Preamp Pedal
Show all:
Preamps,Accessories
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

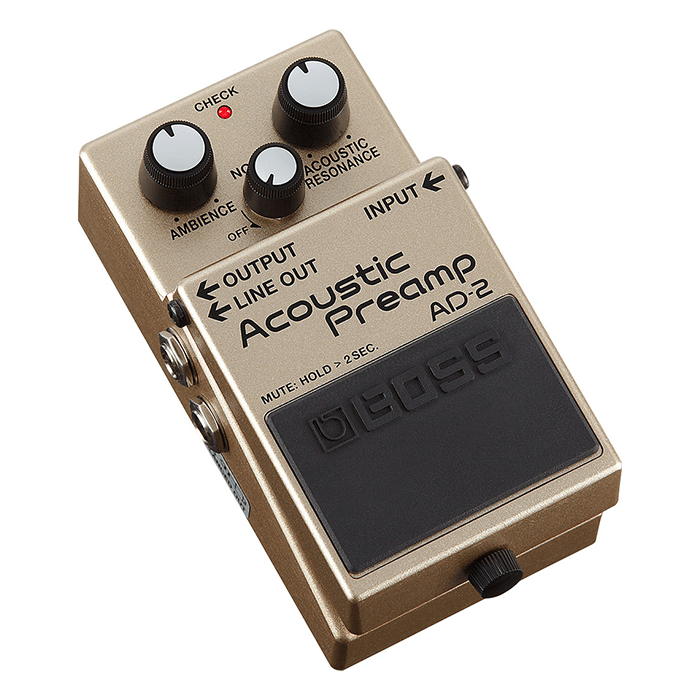

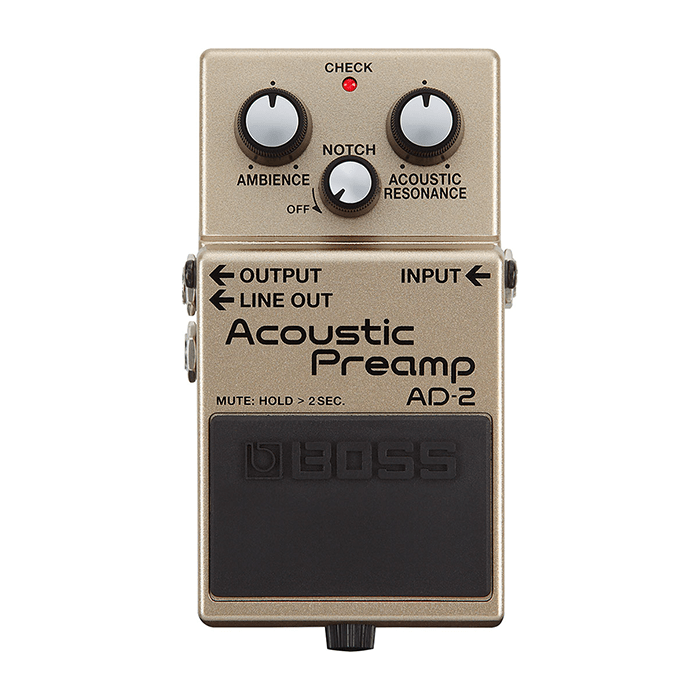

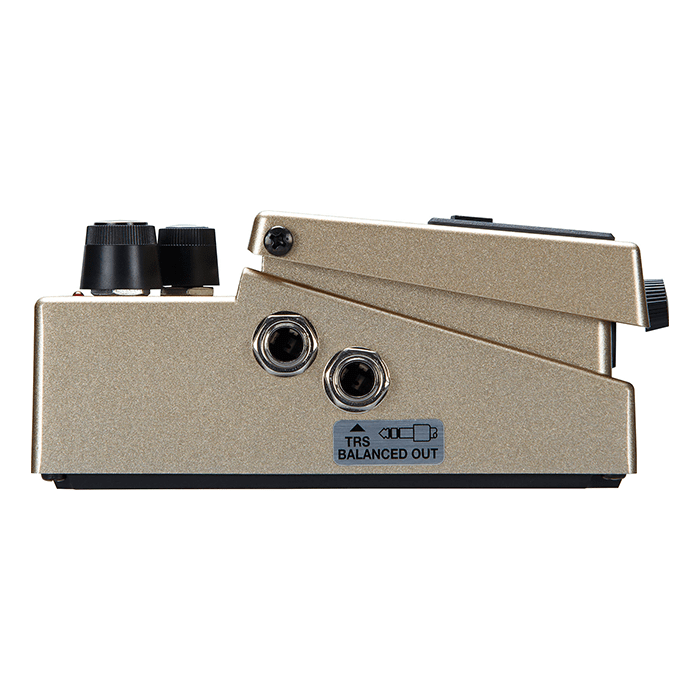

The Boss AD-2 Acoustic Preamp Pedal brings the natural character of your acoustic guitar to the stage with clarity and precision. Powered by an advanced BOSS sound engine, this compact pedal recreates the rich resonance of an unplugged instrument and adds depth with optimized ambience effects. The intuitive controls make it easy to shape your tone without complication. Essential live features include a notch filter to eliminate feedback, a balanced DI output for direct PA connection, and a mute function for silent tuning or switching guitars.
FEATURES
- Acoustic-electric guitar preamp with advanced BOSS sound processing
- Sophisticated under-the-hood processing with multiple interlocked parameters, accessible with simple stompbox controls
- Acoustic Resonance reproduces the complex resonance characteristics of an unplugged acoustic
- Ambience knob provides wide-ranging, studio-quality reverb optimized for acoustic guitar
- Notch filter for instant feedback reduction
- Normal output for an acoustic guitar amp and balanced DI output for direct PA connection
- Sound mute function for switching guitars and tuning on stage
- BOSS five-year warranty
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 10 M ohms |
| Nominal Output Level | OUTPUT jack: -20 dBu LINE OUT jack: -20 dBu |
| Output Impedance | OUTPUT jack: 1 k ohm LINE OUT jack: 600 ohms |
| Recommended Load Impedance | OUTPUT jack: 10 k ohms or greater LINE OUT jack: 600 ohms or greater |
| Bypass | Buffered bypass |
| Controls | Pedal switch ACOUSTIC RESONANCE knob AMBIENCE knob NOTCH knob |
| Indicator | CHECK indicator (also serves as battery check indicator) |
| Connectors | INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type LINE OUT jack: 1/4-inch TRS phone type DC IN jack |
| Power Supply | Alkaline battery (9V, 6LR61) AC adaptor (sold separately) |
| Current Draw | 65 mA |
| Expected Battery Life | Alkaline: Approx. 5 hours *These figures vary depending on conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," "Information") Alkaline battery (9V, 6LR61) |
| Options (sold separately) | AC adaptor (PSA series) |
| Size and Weight | Width: 73 mm / 2-7/8 inches Depth: 129 mm / 5-1/8 inches Height: 59 mm / 2-3/8 inches Weight (including battery): 420 g / 15 oz |
