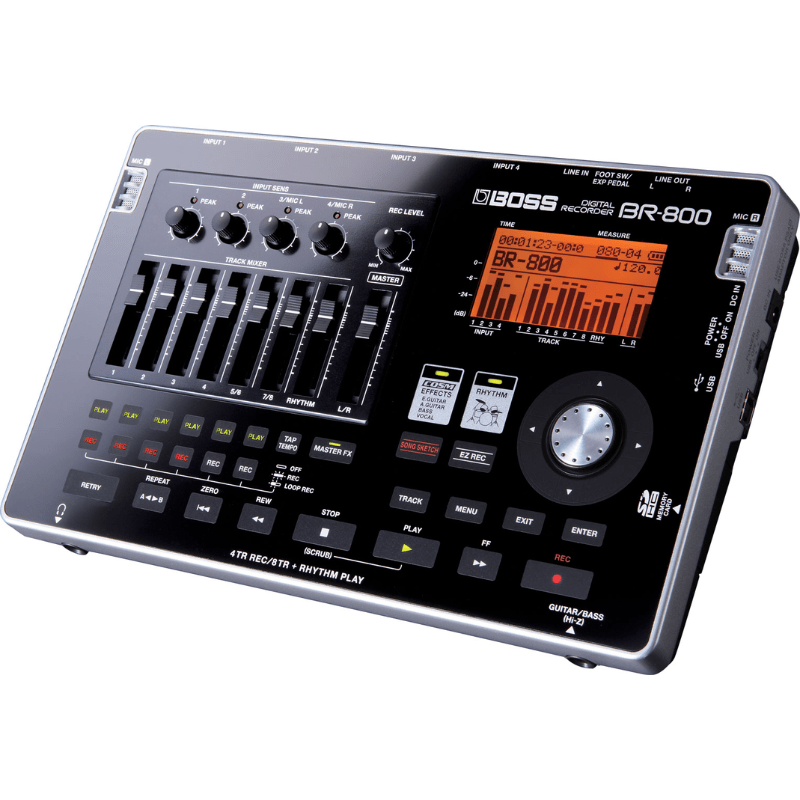

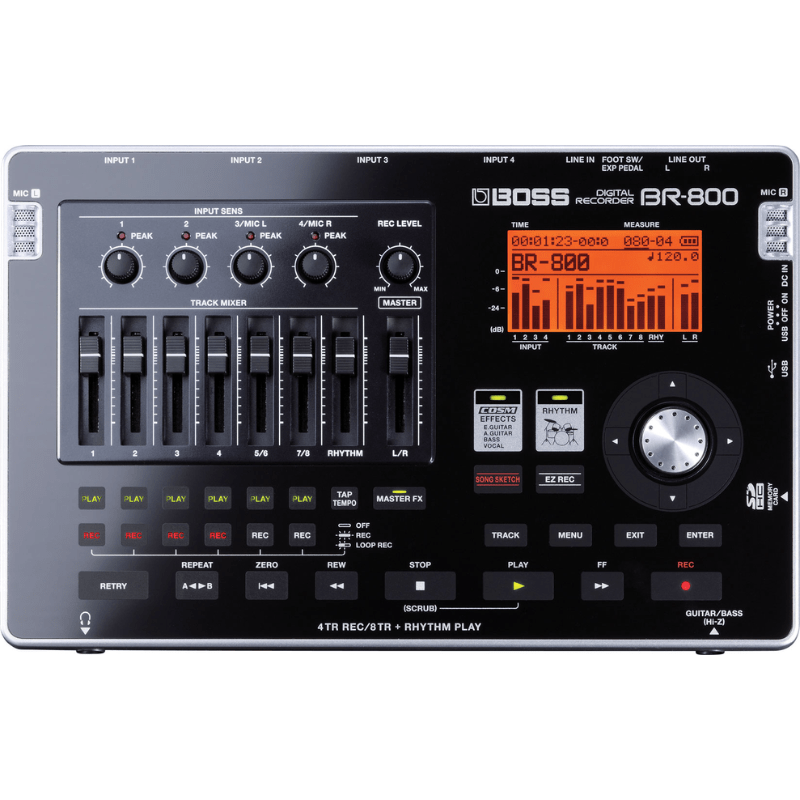

BossBR800 Digital Recorder Multi Track All In One Home Studio
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
The Boss BR800 Digital Recorder Multi Track All In One Home Studio offers 4-track recording, 8-track playback, built-in effects, stereo mic, and rhythm generator in a portable design.
FEATURES
- 4-track simultaneous recording, 8-track simultaneous playback plus dedicated stereo rhythm track playback
- EZ Recording interactively guides through the recording process
- Powerful guitar, bass, and vocal effects derived from BOSS’s flagship processors
- Song Sketch recording for quick stereo capture in WAV format
- Built-in advanced drum machine with editor software
- Functions as a USB audio interface and DAW control surface
- Built-in stereo condenser microphone for instant recording
- Sleek new interface based on touch sensors
- SD included (supports up to 32GB SDHC card)
- Runs on six AA batteries, USB bus power, or AC adaptor (included)
SPECIFICATIONS
| Number of Tracks | Track: 8 Simultaneously recording track: 4 V-Track: 64 (8 V-Tracks per Track) |
| Sample Rate | 44.1 kHz |
| Frequency Response | 20 Hz to 20 kHz (+1/-3 dB) |
| AD Conversion | 24-bit 24-bit + AF method (GUITAR/BASS input) *AF (Adaptive Focus) method is a proprietary method from Roland that improves S/N ratio of A/D and D/A converters. |
| DA Conversion | 24-bit |
| Compatible Card Capacity | SD Card: 1 GB to 2 GB SDHC Card: 4 GB to 32 GB |
| Data Type | HiFi (MT2) Roland/BOSS original format 16-bit linear stereo WAV format (*SONG SKETCH only) |
| Recording Time (Multi-track) | 1 GB: 8h 40m 2 GB: 17h 4 GB: 34h 8 GB: 68h 16 GB: 136h 32 GB: 272h * Total time for all tracks. Equal data per 8 tracks ≈ 1/8 of time shown. |
| Recording Time (SONG SKETCH) | 1 GB: 90 min 2 GB: 3h 4 GB: 6h 8 GB: 12h 16 GB: 24h 32 GB: 48h |
| Nominal Input Level | GUITAR/BASS: -10 dBu INPUT 1–4: -50 to -20 dBu (XLR), -26 to +4 dBu (1/4" TRS) LINE IN: -10 dBu |
| Input Impedance | GUITAR/BASS: 1 MΩ INPUT 1–4: 3 kΩ (XLR), 47 kΩ (1/4" TRS) LINE IN: 10 kΩ |
| Nominal Output Level | LINE OUT: -10 dBu |
| Output Impedance | LINE OUT: 1 kΩ |
| Recommended Load Impedance | LINE OUT: 20 kΩ or greater PHONES: 32–100 Ω |
| Residual Noise Level | LINE OUT: -85 dBu or less (IHF-A Typ.) |
| Display | 128 × 64 dots (Backlit LCD) |

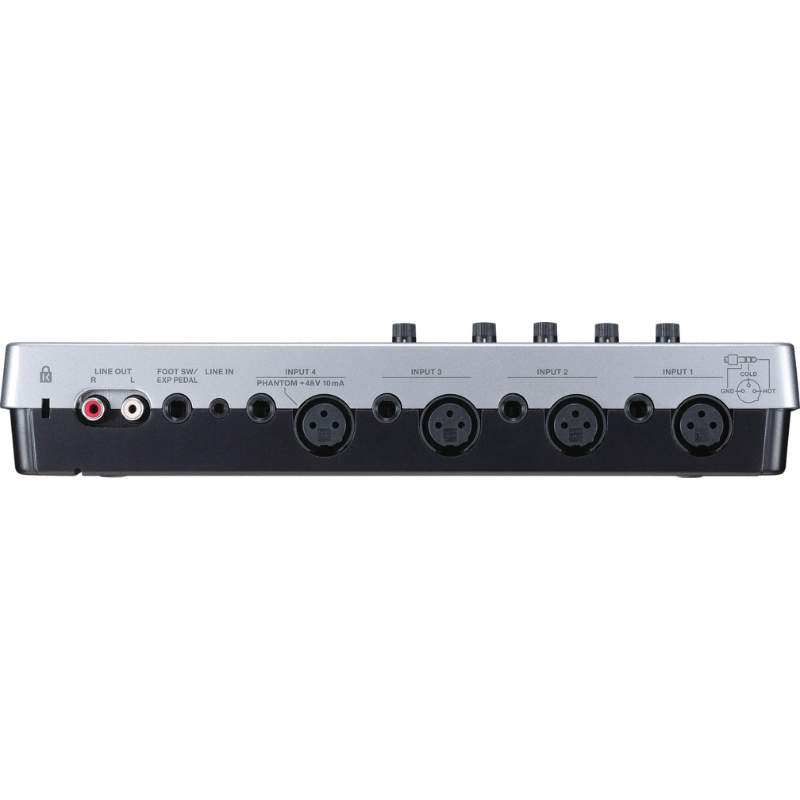

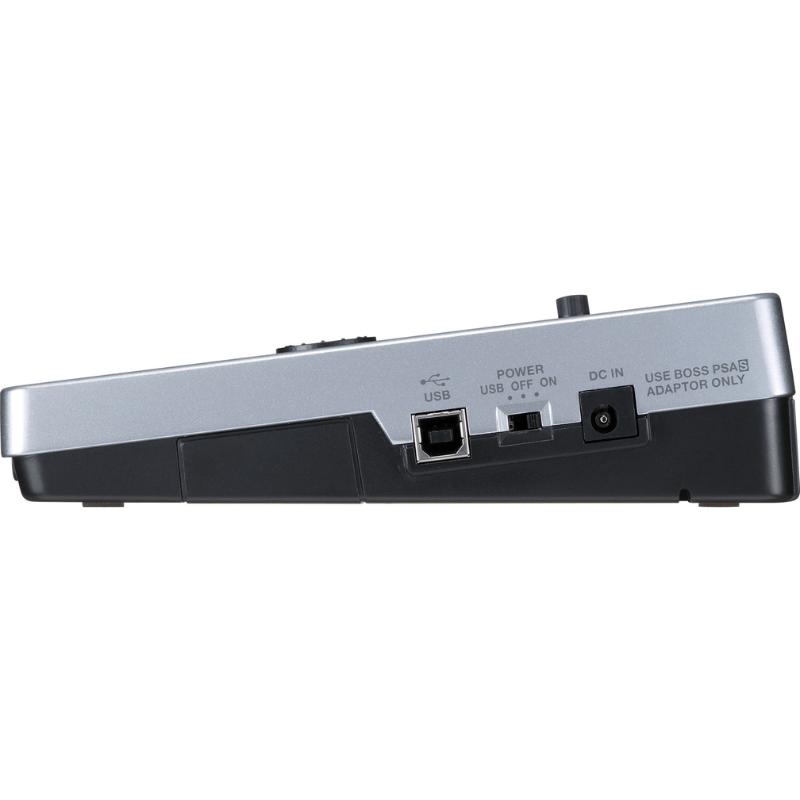

| Connectors | GUITAR/BASS jack (1/4") INPUT 1–4 (XLR / 1/4" TRS) LINE IN (Stereo mini jack) FOOT SW/EXP PEDAL (1/4" TRS) LINE OUT (RCA) PHONES (Stereo 1/4") USB connector DC IN jack |
| USB Function | Audio I/O MIDI I/O File Transfer BUS Power operation |
| Power Supply | DC 9V (AC Adaptor) Size AA x 6 (alkaline recommended) USB Bus Power |
| Current Draw | 280 mA (DC IN) 480 mA (USB Bus Power) |
| Battery Life (Continuous) | Approx. 5.5 hours (alkaline, 8-track playback, phantom off) * Varies by usage, phantom, batteries, SD card. |
| Accessories | SD Card AC Adaptor USB Cable Owner's Manual |
| Options (Sold Separately) | Footswitch: FS-5U Pedal Switch: DP-2 (Roland) Expression Pedal: EV-5 (Roland) FV-500L/FV-500H |
| Size and Weight | Width: 289 mm / 11-7/16" Depth: 184 mm / 7-1/4" Height: 58 mm / 2-5/16" Weight: 890 g / 2 lbs. |
