BossDM2W Delay Pedal
Show all:
Delay,Accessories
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

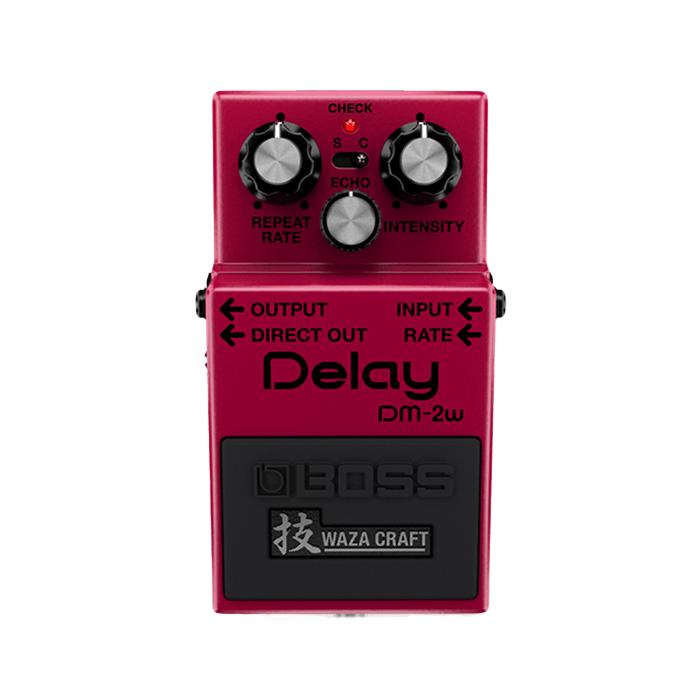

The Boss DM-2W Delay Pedal restores the iconic DM-2 analog delay famous for its distinct bucket-brigade vintage tone. DM-2W has undergone Waza Craft enhancement to provide Standard mode delay from 20-300 ms, and Custom mode offers longer delay duration with cleaner tones. This precious pedal draws its mechanical design from analog circuits to provide musicians with unique benefits, which include expressive delays with rich sound quality and contemporary ease of use.
FEATURES
- Waza Craft innovation for a premium analog tone experience
- True reproduction of the vintage DM-2 Delay sound
- Premium all-analog circuit with BBD (bucket brigade) delay line
- Standard mode for authentic DM-2 tone with 20-300 ms delay time
- Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
- Expression pedal input for foot control of delay time
- Two output jacks allow separate output of delay and direct sounds
- Made in Japan
- BOSS five-year warranty
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Delay Time | Standard Mode: 20 ms to 300 ms Custom Mode: 40 ms to 800 ms |
| Controls | Pedal switch REPEAT RATE knob INTENSITY knob ECHO knob Mode switch |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type RATE jack: 1/4-inch TRS phone type DC IN jack |
| Power Supply | Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately) |
| Current Draw | 35 mA |
| Expected Battery Life Under Continuous Use | Alkaline: Approx. 15 hours Carbon: Approx. 5 hours * These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61) |
| Options (Sold Separately) | AC adaptor (PSA series) Expression pedal: Roland EV-5 |
| Size and Weight | Width: 73 mm (2-7/8 inches) Depth: 129 mm (5-1/8 inches) Height: 59 mm (2-3/8 inches) Weight: 460 g (1 lb 1 oz) |
