BossEQ- 200 Guitar Effects Graphic Equalizer
Show all:
EQ,Accessories
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

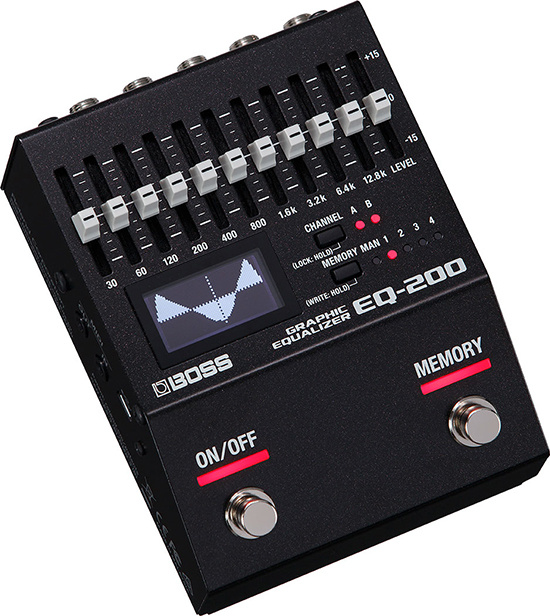

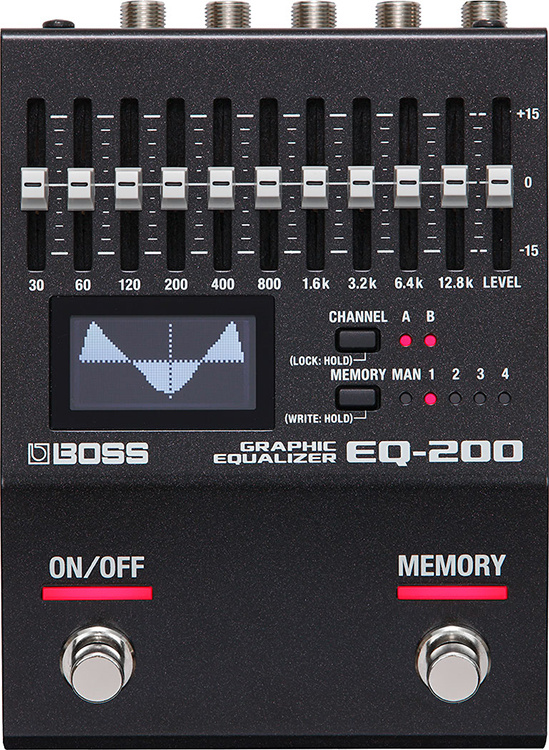

The Boss EQ-200 Guitar Effects Graphic Equalizer gives you precise tone control with two 10-band EQ sections. You can run the channels in stereo, series, or parallel, and each band offers up to 15 dB of boost or cut. Three range settings let you match the pedal to different instruments. It stores 128 presets and supports MIDI control. The insert function lets you shape external pedals within the chain.
SPECIFICATIONS
| Sampling Frequency | 96 kHz |
| AD/DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Memory | 127 + Manual |
| Nominal Input Level | INPUT A/MONO, B: -10 dBu |
| Maximum Input Level | INPUT A/MONO, B: +7 dBu |
| Input Impedance | INPUT A/MONO, B: 2 M ohm |
| Nominal Output Level | OUTPUT A/MONO, B: -10 dBu |
| Maximum Output Level | OUTPUT A/MONO, B: +7 dBu |
| Output Impedance | OUTPUT A/MONO, B: 1 k ohms |
| Recommended Load Impedance | OUTPUT A/MONO, B: 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | ON/OFF switch, MEMORY switch 30--12.8 k sliders, LEVEL slider A/B button, MEMORY button |
| Display | Graphic LCD (64 x 32 dots, backlit LCD) |
| Indicator | A/B indicator, MEMORY (MAN, 1--4) indicators |

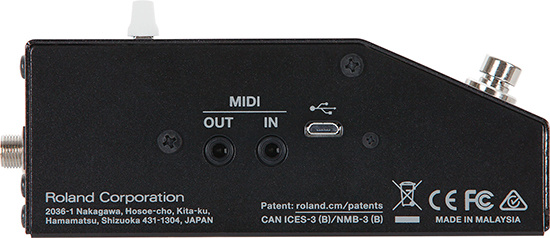

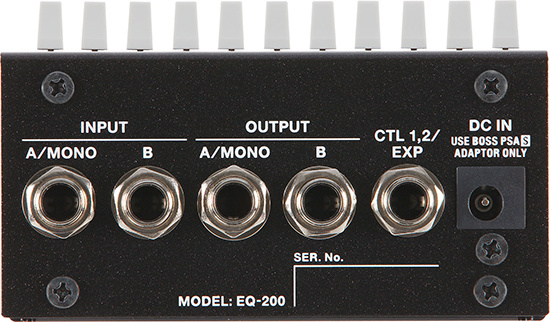

| Connectors | INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type CTL 1, 2/EXP jack: 1/4-inch TRS phone type MIDI (IN, OUT) jacks: Stereo miniature phone type DC IN jack USB port: USB micro-B type (program update only) |
| Power Supply | Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately) |
| Current Draw | 170 mA |
| Expected Battery Life Under Continuous Use | Alkaline: Approx. 7 Hours * These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet "USING THE UNIT SAFELY" Leaflet "To obtain the Owner’s Manual" Alkaline battery (AA, LR6) x 3 Rubber foot x 4 |
| Options (sold separately) | AC adaptor: PSA-S series Footswitch: FS-5U Dual footswitch: FS-6, FS-7 Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
| Width | 101 mm | 4 inches |
| Depth | 138 mm | 5-7/16 inches |
| Height | 60 mm | 2-3/8 inches |
| Height (including rubber foot) | 62 mm | 2-1/2 inches |
| Weight (excluding battery) | 630 g | 1 lb 7 oz |
| Weight (including battery) | 700 g | 1 lb 9 oz |
