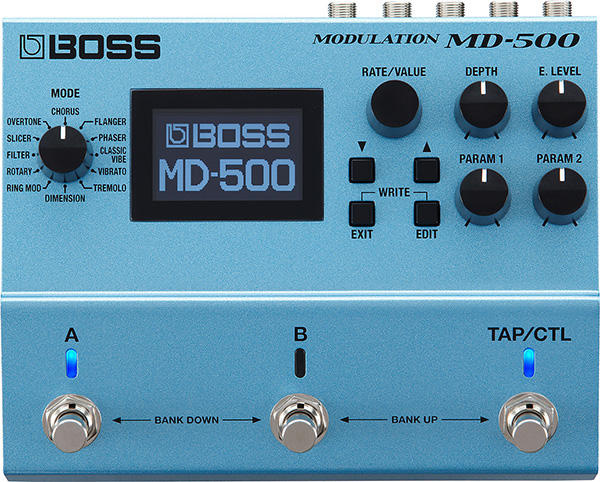

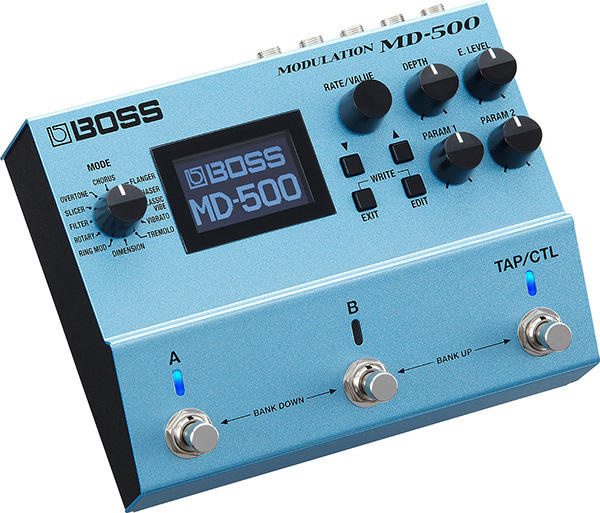

BossMD-500 Modulation Effects Processor
Show all:
Modulation,Accessories
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
Nearly any modulation effect a musician might desire is delivered with the incredibly flexible MD-500, and then some. With the inclusion of 28 distinct algorithms and extensive programming settings, the available sound palette is practically infinite. You'll also enjoy the crystal-clear sound quality that surpasses the capabilities of the best studio hardware thanks to class-defying 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate throughout.
Features
- - Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- - 12 modes and 28 modulation types, all with deep editing parameters
- - Classic mod effects and BOSS originals, newly enhanced with cutting-edge technology
- - A/B Simul mode for using two patches at once, with your choice of series/parallel connection and mixed or split A/B output
- - Insert Loop function allows you to use mod effects before, after, or around drive pedals
- - Graphic LCD and intensive real-time control options
- - 297 onboard patch memories and hands-on controls
- - Selectable buffered-bypass or true-bypass operation
- - MIDI I/O for interfacing with MIDI control devices
- - USB-MIDI for connecting to the MD-500 Editor/Librarian or a DAW
- - Runs on four AA-size batteries or PSA-series AC adapter
SPECIFICATIONS
| Sampling Frequency | 96 kHZ |
| AD/DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Modes | 12 modes, CHORUS, FLANGER, PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, DIMENSION, RING MOD, ROTARY, FILTER, SLICER, OVERTONE |
| Memory | 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C]) |
| Nominal Input Level | INPUT A/MONO, B: -10 dBu |
| Maximum Input Level | INPUT A/MONO, B: +8 dBu |
| Input Impedance | INPUT A/MONO, B: 1 M ohm |
| Nominal Output Level | OUTPUT A/MONO, B: -10 dBu |
| Maximum Output Level | OUTPUT A/MONO, B: +8 dBu |
| Output Impedance | OUTPUT A/MONO, B: 2 k ohms |
| Recommended Load Impedance | OUTPUT A/MONO, B: 20 k ohms or greater |
| Bypass | Buffered bypass or True bypass (with relays) |
| Controls | A switch, B switch, TAP/CTL switch |
| DOWN button, UP button, EXIT button, EDIT button | |
| MODE knob, RATE/VALUE knob, DEPTH knob, E.LEVEL knob, PARAM 1 knob, PARAM 2 knob | |
| Display | Graphic LCD (128 x 64 dots, backlit LCD) |

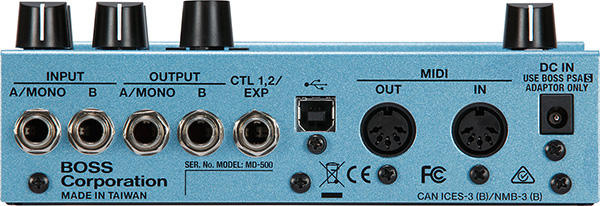

| Connectors | INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type |
| CTL 1,2/EXP jack: 1/4-inch TRS phone type | |
| USB COMPUTER port: USB type B | |
| MIDI (IN, OUT) connectors | |
| DC IN jack | |
| Power Supply | Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately) |
| Current Draw | 225 mA |
| Expected battery life under continuous use | Alkaline: Approx. 4.5 hours * These figures will vary depending on the actual conditions of use. |
| Accessories | AC adaptor: PSA-S series |
| Footswitch: FS-5U, FS-5L | |
| Dual Footswitch: FS-6, FS-7 | |
| Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 | |
| SIZE AND WEIGHT | |
| Width | 170 mm | 6-3/4 inches |
| Depth | 138 mm | 5-7/16 inches |
| Height | 62 mm | 2-1/2 inches |
| Weight (including battery) | 1.0 kg |2 lbs 4 oz |
