Name: Boss RC-10R Rhythm Loop Station
Brand: Boss
SKU: RC-10R
Price: 410.00 EUR
Availability: InStock

Description

The Boss RC-10R Rhythm Loop Station is a compact, powerful tool for musicians. It features two independent song sections, rhythm fills, intros, and endings, plus over 280 preset rhythms and 16 drum kits. Six hours of stereo recording with 32-bit processing ensures high-quality sound. Onboard storage holds 99 phrases and 50 user rhythms, while external control is possible via footswitch, expression pedal, or MIDI. Circular loop indicators and an intuitive LCD make operation simple.

SPECIFICATIONS

Sampling Frequency	44.1 kHz
AD/DA Conversion	32 bits
Processing	32-bit floating point
Recording/Playback	Maximum Recording Time: Approx. 6 hours (stereo) Maximum Phrase Memory: 99 Number of Tracks: 2 Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Rhythm Type	280 types or greater
Rhythm Control	Intro, Pattern 1, Pattern 1 Fill, Pattern 2, Pattern 2 Fill, Ending
Rhythm Kit	16 types
Maximum Polyphony	24 voices
Effect	Reverb (only for rhythm part)
Memory	99
Nominal Input Level	INPUT A/MONO, B: -10 dBu
Maximum Input Level	INPUT A/MONO, B: +8 dBu
Input Impedance	INPUT A/MONO, B: 1 M ohm
Nominal Output Level	OUTPUT A/MONO, B: -10 dBu
Maximum Output Level	OUTPUT A/MONO, B: +8 dBu
Output Impedance	OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance	OUTPUT A/MONO, B: 10 k ohms or greater
Bypass	Buffered bypass
Controls	RHYTHM switch, LOOP switch VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob MENU button, EXIT button
Display	16 characters x 2 lines LCD (with backlit)
Indicator	RHYTHM indicator, LOOP indicator

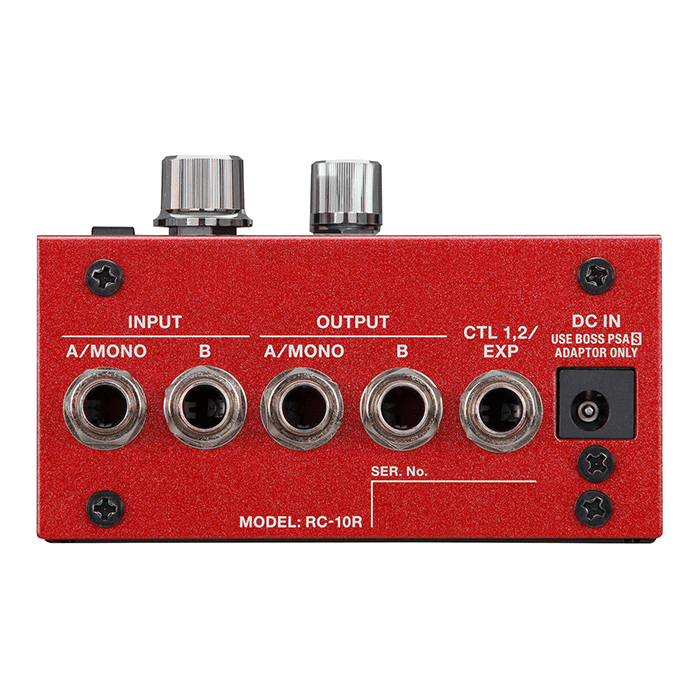

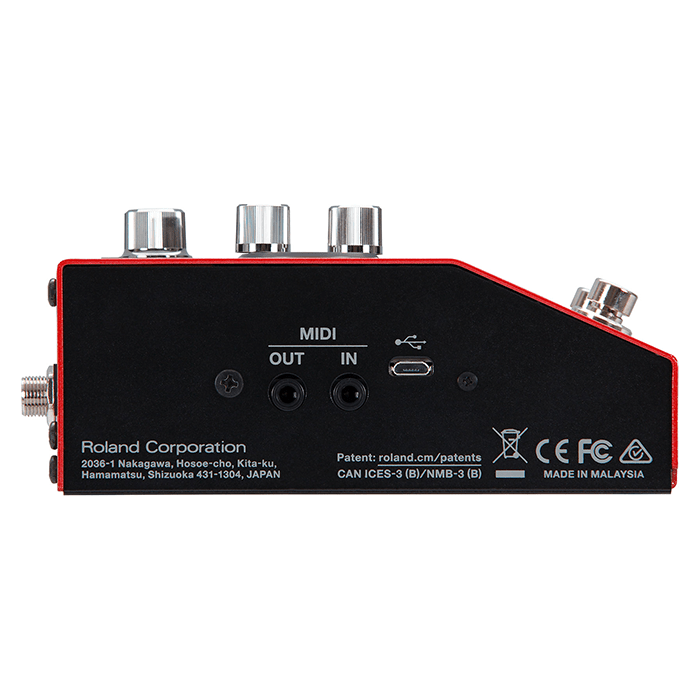

Connectors	INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type CTL 1, 2/EXP jack: 1/4-inch TRS phone type MIDI (IN, OUT) jacks: stereo miniature type DC IN jack USB COMPUTER port: USB micro B type
Power Supply	AC adaptor
Current Draw	250 mA
Power Consumption (OFF Mode)	0.0 W
Accessories	Owner's Manual Leaflet "USING THE UNIT SAFELY" AC adaptor Rubber foot x 4
Options (sold separately)	Footswitch: FS-5U Dual footswitch: FS-6, FS-7 Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5 TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Width	101 mm \| 4 inches
Depth	138 mm \| 5-7/16 inches
Height (excluding rubber foot)	63 mm \| 2-1/2 inches
Height (including rubber foot)	65 mm \| 2-9/16 inches
Weight (excluding AC adaptor)	620 g \| 1 lbs 6 oz
