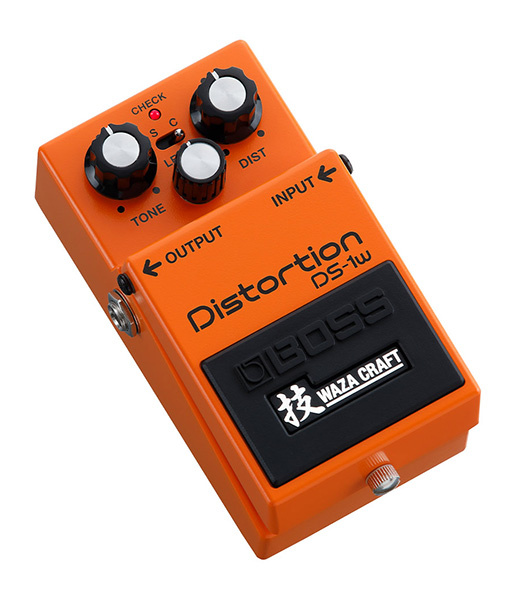

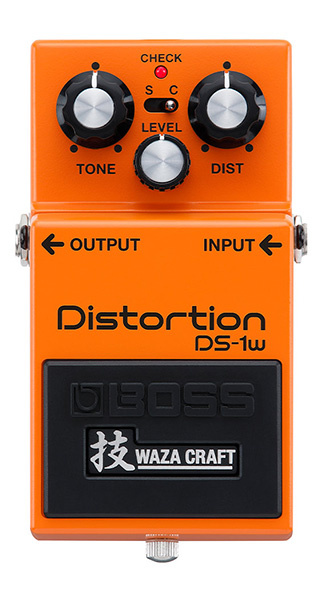

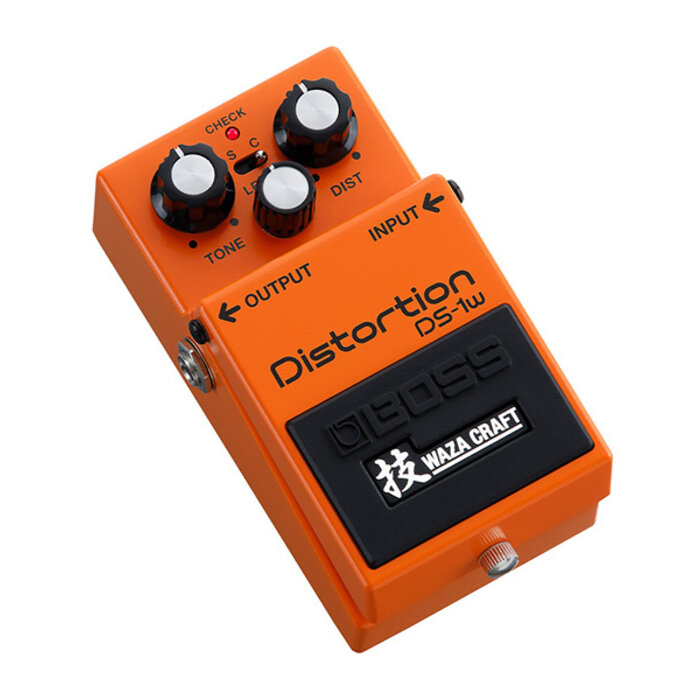

The orange DS-1 changed the distortion's tone and is still widely used today. It has been the most popular compact effect to date thanks to its hard-edged attack and smooth sustain, and a lengthy list of rock and alternative icons' unique sounds are influenced by its distinctive tone.
Features
- - Special edition Waza Craft pedal for the ultimate BOSS tone experience
- - Newly revised two-stage gain circuit with discrete analog components
- - Standard mode delivers the legendary sound of the original DS-1
- - Custom mode provides fatter distortion tones with focused midrange and increased touch response
- - Versatile Tone knob provides wide-ranging frequency control fine-tuned for each mode
- - Two modes offer increased versatility when the pedal is used as a gain booster
- - Premium buffer for clean and clear tone when bypassed
- - BOOS five-year warranty
SPECIFICATIONS
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohms |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohms |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | Pedal switch |
| Mode switch | |
| Dist knob | |
| Level knob | |
| Tone knob | |
| Indicator | Check indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack: 1/4-inch phone type |
| OUTPUT jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Alkaline battery (9 V, 6LR61 or 6LF22) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately) |
| Current Draw | 15 mA |
| Expected battery life under continuous use | Alkaline: Approx. 50 hours |
| Carbon: Approx. 25 hours | |
| *These figures will vary depending on the actual conditions of use | |
| Accessories | Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”) Alkaline battery (9 V, 6LR61 or 6LF22) |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight (including battery) | 430 g 1 lb |
