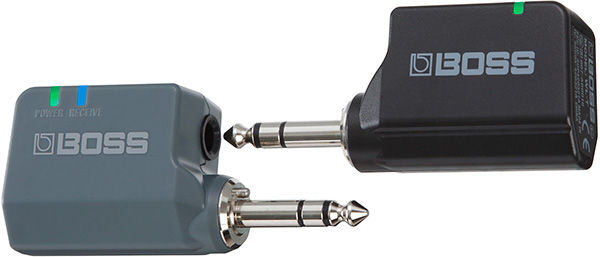

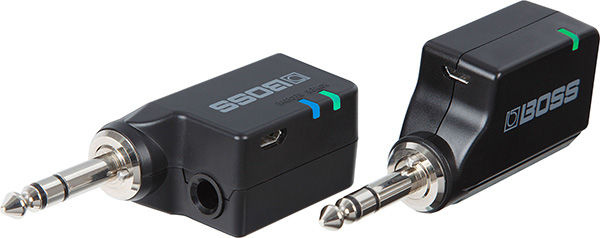

BossWL-20L Wireless System
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
These tools are designed to be ultra-compact, meaning they are small and portable, and they offer plug-and-play functionality, which means you can start using them right away without any complicated setup procedures.
Features
- - Plug-and-play wireless systems for guitar, bass, and other electronic instruments
- - No complicated setup required—simply dock the transmitter and receiver together for about 10 seconds to set the optimum wireless connection
- - Newly developed BOSS technology delivers premium audio performance with rock-solid stability, ultra-low latency (2.3 ms), and a 50-foot/15-meter range (line-of-sight propagation)*
- - Built-in rechargeable batteries provide up to 12 hours of continuous playing time**
- - Simple charging with a standard USB adaptor (5 V/500 mA or greater)
- - Cable tone simulation reproduces the natural capacitive effect of a 10-foot/3-meter guitar cable (WL-20 model only)
- - Spare WL-T Transmitter available separately
SPECIFICATIONS
| Wireless Format | BOSS proprietary digital audio format |
| Wireless carrier frequency | 2.4 GHz |
| Compatible Channels | 14 |
| (May vary due to local conditions) | |
| Transmission Range | 50 feet line-of-sight |
| (May vary due to local conditions) | |
| Latency | 2.3 ms |
| Dynamic Range | 110 dB or greater |
| Frequency Response | 20 Hz--20 kHz |
| Nominal Output Level | -10 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Indicators | POWER |
| RECEIVE | |
| Connectors | Output plug: 1/4-inch TRS phone type |
| TRANSMITTER jack: 1/4-inch TRS phone type | |
| DC IN 5 V port: USB Micro-B type | |
| Power Supply | Rechargeable lithium-ion battery |
| Supplied from the DC IN 5 V port | |
| Current Draw | During wireless operation: 60 mA |
| While charging: 500mA | |
| Battery charging time | Charging only the receiver: Approximately 3 hours |
| Charging simultaneously with the transmitter: Approximately 4 hours | |
| Expected battery life under continuous use | Approximately 7 hours |
| * These figures will vary depending on the actual conditions of use. | |
| Accessories | Owner's Manual |
| Leaflet USING THE UNIT SAFELY | |
| Transmitter | |
| Micro USB cable for charging (*1) | |
| *1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging. | |
| SIZE AND WEIGHT(RECEIVER) | |
| Width | 87 mm | 3-7/16 inches |
| Depth | 25 mm | 1 inches |
| Height | 38 mm | 1-1/2 inches |
| Weight | 60 g | 3 oz |
| SPECIFICATIONS (TRANSMITTER (WL-T)) | |
| Nominal Input Level | -10 dBu (1 M ohm) |
| Indicator | BATTERY |
| Connectors | Input plug: 1/4-inch TRS phone type |
| DC IN 5 V port: USB Micro-B type | |
| Power Supply | Rechargeable lithium-ion battery |
| Supplied from the DC IN 5 V port | |
| Current Draw | 350mA |
| Battery charging time | Approximately 3 hours |
| Expected battery life under continuous use | Approximately 12 hours |
| * These figures will vary depending on the actual conditions of use. | |
| SIZE AND WEIGHT (TRANSMITTER (WL-T)) | |
| Width | 87 mm | 3-7/16 inches |
| Depth | 22mm | 7/8 inches |
| Height | 36mm | 1-7/16 inches |
| weight | 46 g | 2 oz |
