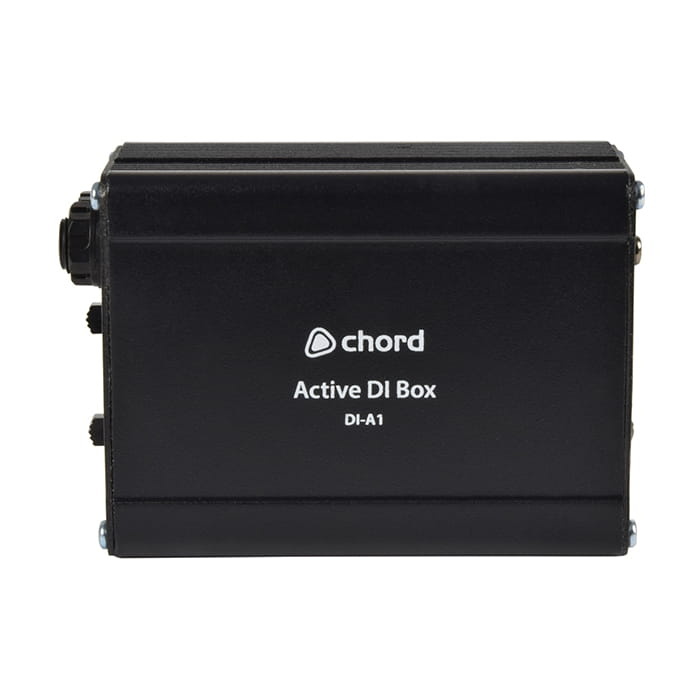

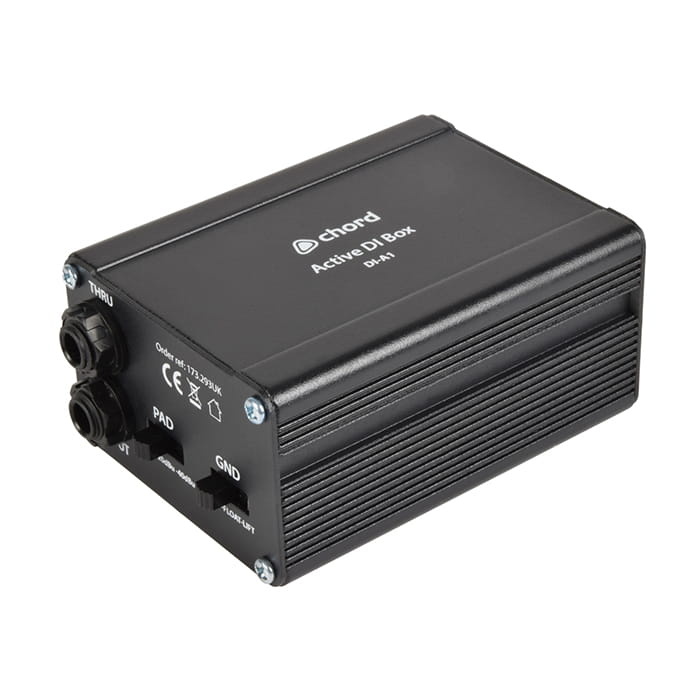

The Chord DI-A1 DI-A1 Active Direct Injection Box helps you connect your guitar or bass to a mixer with clean sound. It changes your signal so it travels better through long cables without noise. The built in boost keeps your sound strong and clear. You can adjust levels easily using the pad switch, so your sound does not distort. It also has options to remove hum and unwanted noise. You can power it with phantom power, a battery, or an adaptor, so it works in many setups.
SPECIFICATIONS
| Power Supply | 9V battery (PP3 not supplied), 12V DC adaptor (optional) or 9 - 52V phantom power |
| Input | 6.3 mm jack (unbalanced) |

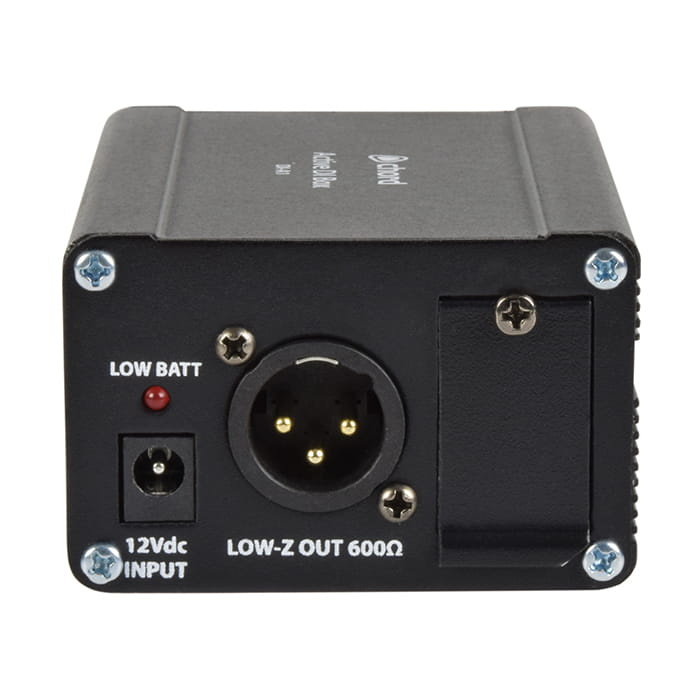

| Outputs | XLRM (balanced), 6.3 mm jack through (unbalanced) |
| Input Impedance | >100 kΩ |
| Output Impedance | 600 Ω |

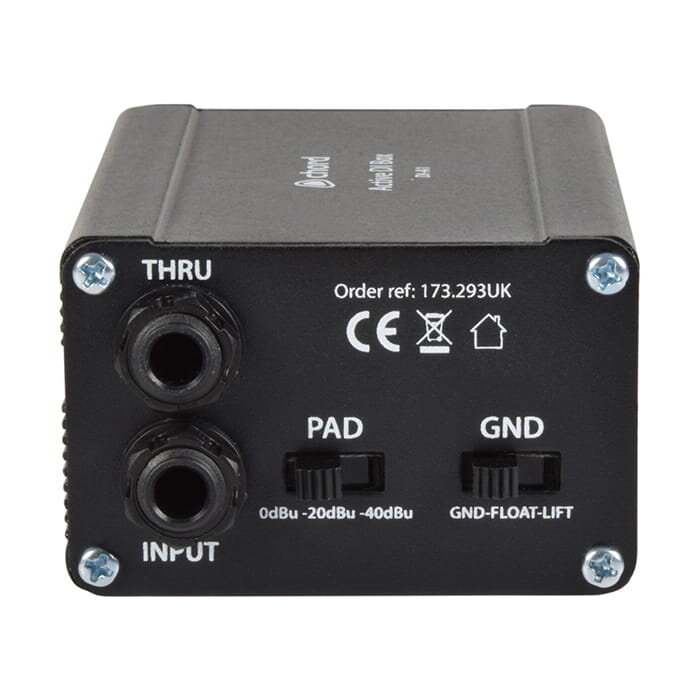

| Controls | 0 / -20 / -40 dBu pad & Ground-Float-Lift switch |
| Dimensions | 103 x 70 x 45 mm |
| Weight | 243 g |
