Description
Read moreRead less

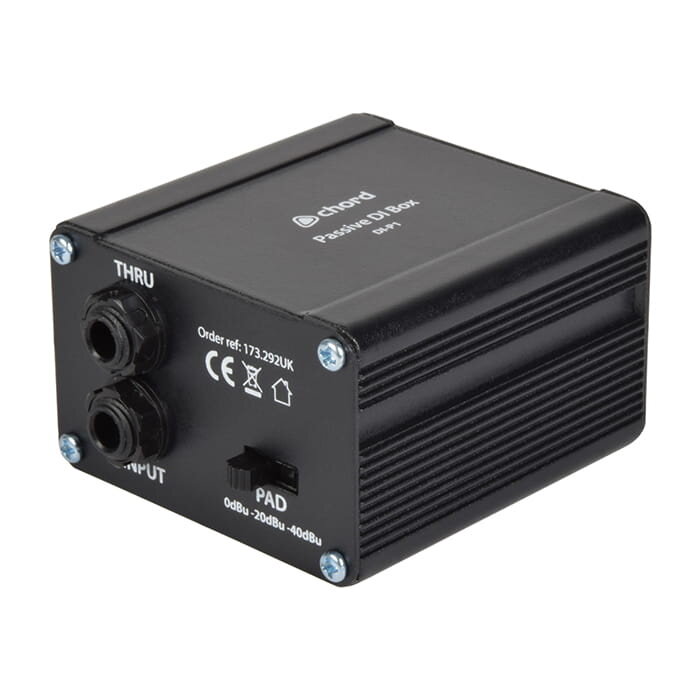

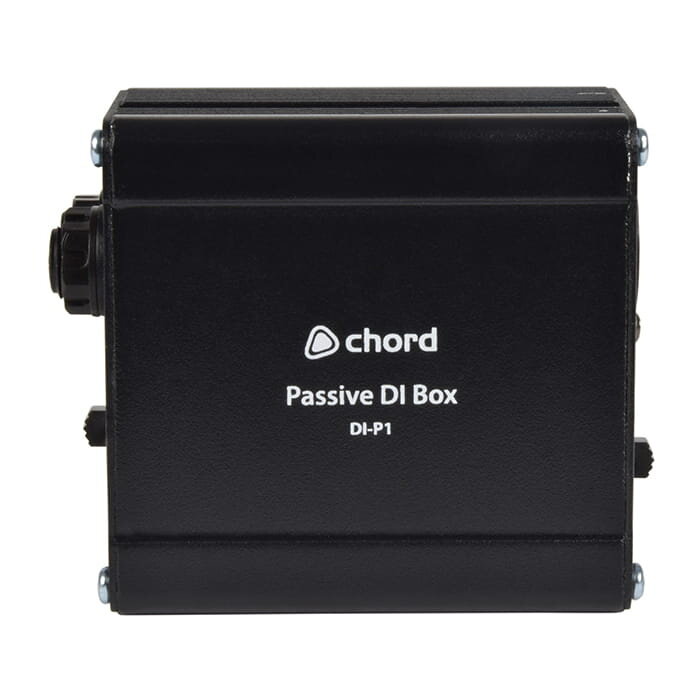

The Chord DI-P1 Passive Direct Injection Box helps you connect your instrument to a mixer with better sound quality. It changes the signal so it travels cleanly without noise or loss. You can adjust the level using the pad settings to keep your sound clear. The ground lift helps remove hum and unwanted noise, and the filter reduces interference. It does not need power, so it is easy to use anywhere.
SPECIFICATIONS
| Input | 6.3mm jack (unbalanced) |
| Outputs | XLRM (balanced), 6.3mm jack through (unbalanced) |
| Input Impedance | >100k Ohms |
| Output Impedance | 600 Ohms |

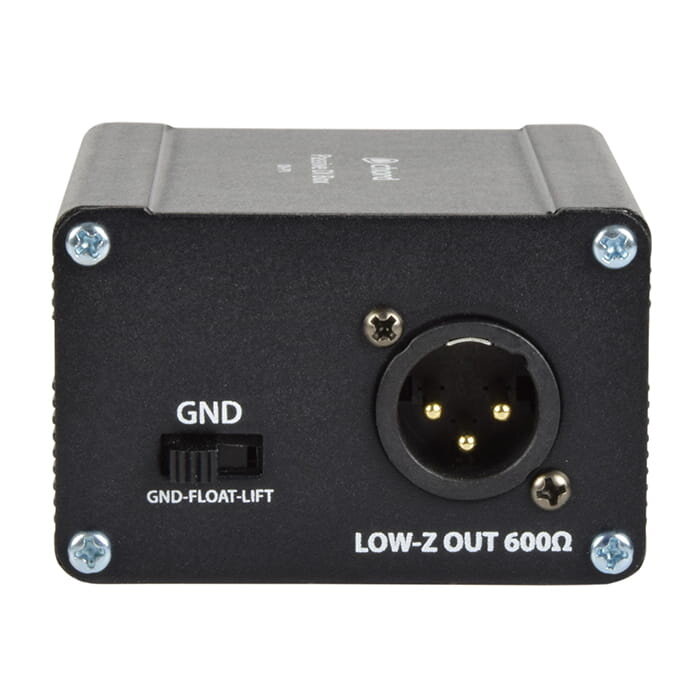

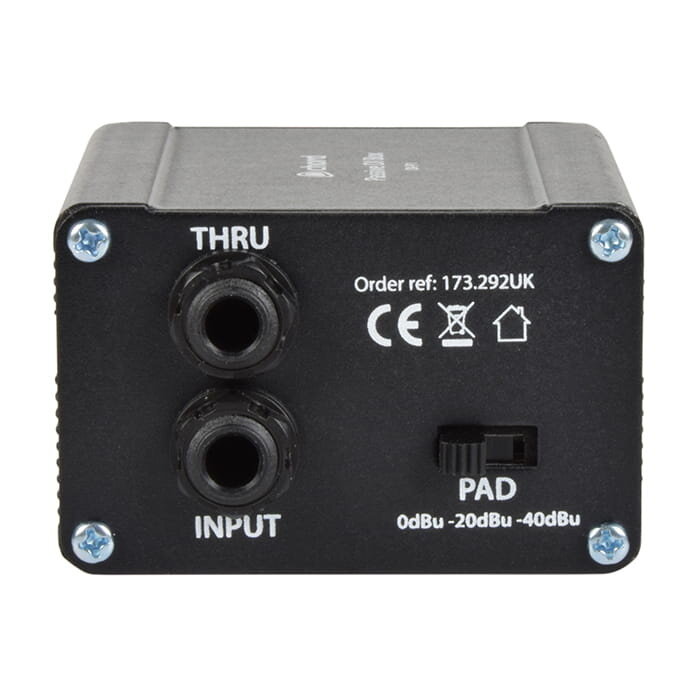

| Controls | 0 / -20 / -40dBu pad & Ground-Float-Lift switch |
| Dimensions | 86 x 70 x 45mm |
| Weight | 234g |
