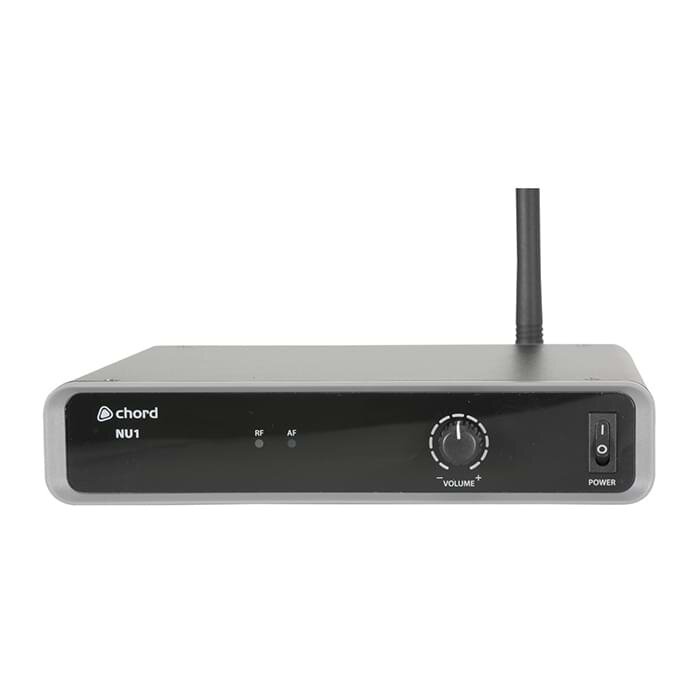

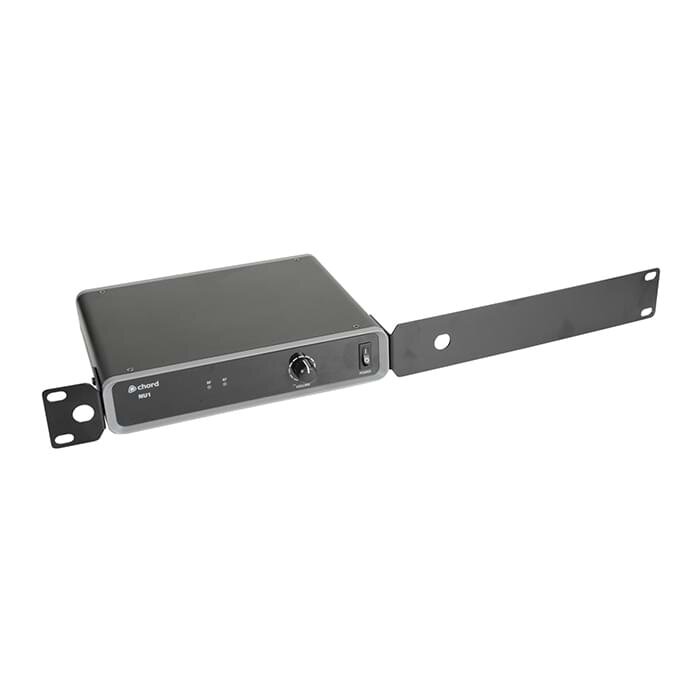

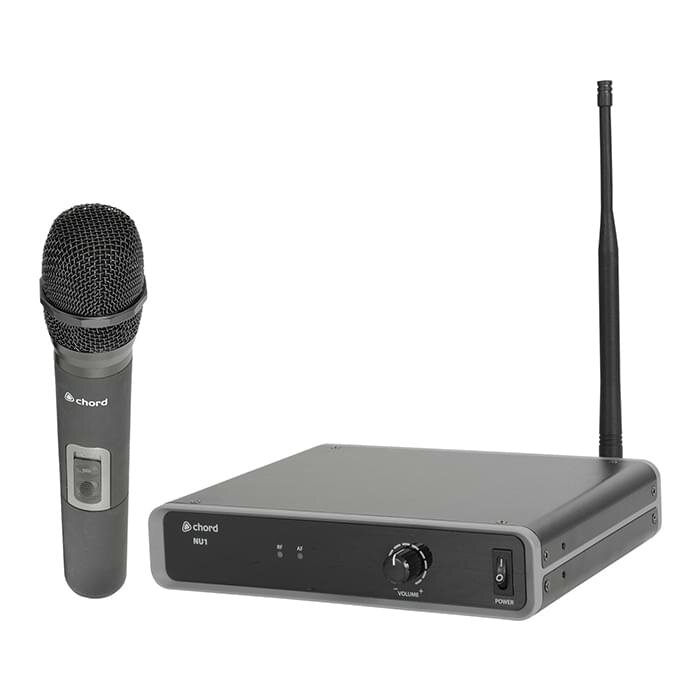

The Chord UHF Wireless Handheld Microphone System includes a fixed UHF transmitter, half-rack receiver, and rack-mount accessories. It offers stable signal transmission, licence-free use, and comes with a mains adaptor and batteries.
| Carrier Frequency | 863.1MHz |
| Power Supply | 12-18Vdc, 350mA (mains adaptor included) |
| Range | 60m |
| Batteries | 2 x AA (for transmitter - included) |
| Signal to Noise Ratio | >105dB |
| THD | <0.5% @ 1kHz |
| Frequency Response | 50Hz-18KHz ±1 dB |
| Image Rejection | >85dB |
| Output Impedance | 2.2k Ohms |
| Output Level | 400mV (balanced), 200mV (unbalanced) |
| Dimensions (Receiver) | 44 x 198 x 190mm |
| Weight (Receiver) | 710g |
| Dimensions (Transmitter) | 243 x 48mmØ |
| Weight (Transmitter) | 238g (no battery) |
