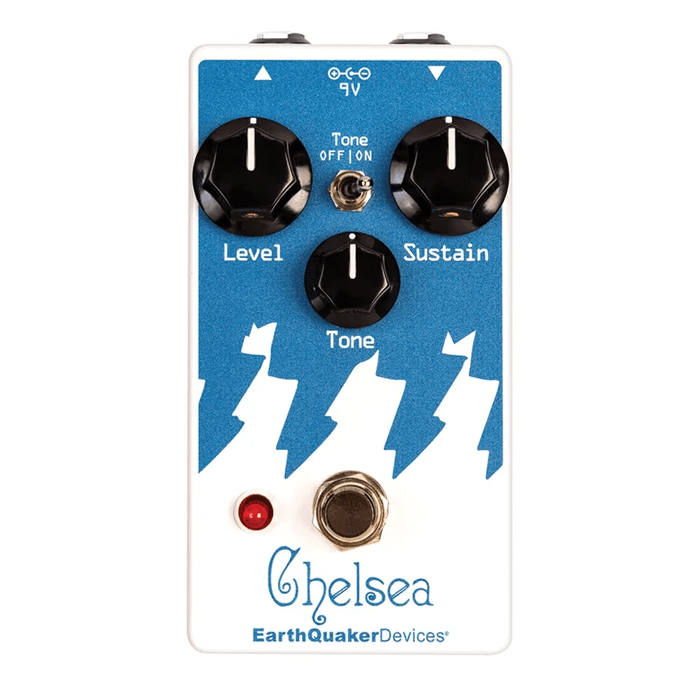

The Chelsea recreates James Murphy’s signature fuzz tone via analog circuitry, offering thick sustain, a flexible tone control with bypass option, and clean true‑bypass relay switching. Built for bass or guitar with clarity and grit.
SPECIFICATIONS
Dimensions
4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw
10 mA
Input Impedance
50 kΩ
Output Impedance
<10 kΩ
Switching
Relay-based true bypass switching
Requires power to pass signal
Power
Standard 9V DC power supply (2.1mm negative center barrel)
Use only pedal-specific, transformer-isolated supplies Do not run at higher voltages
