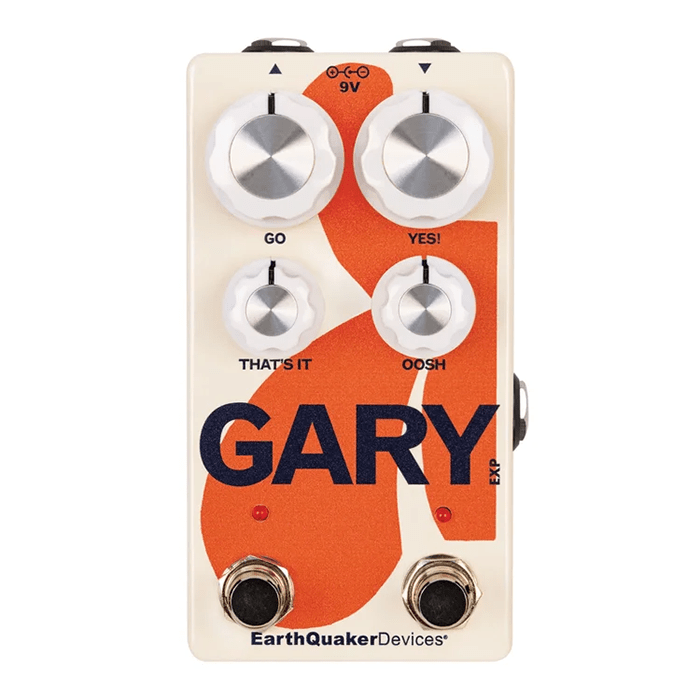

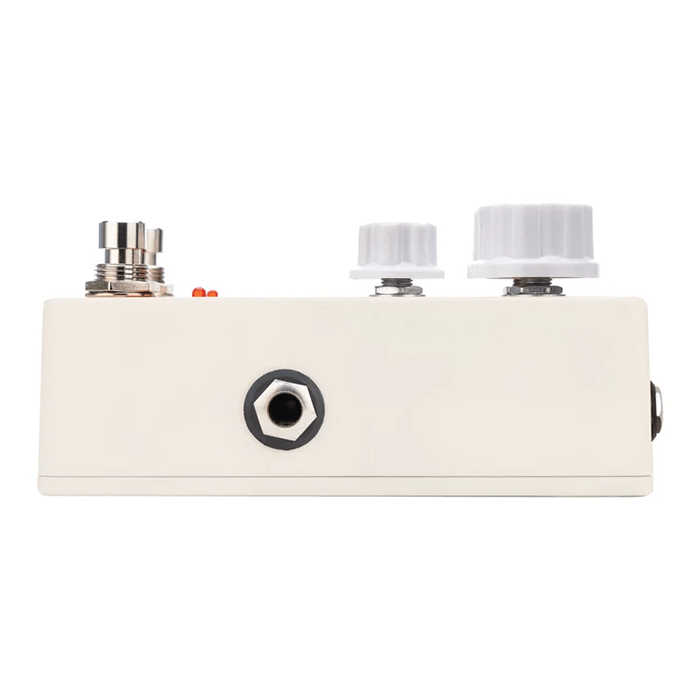

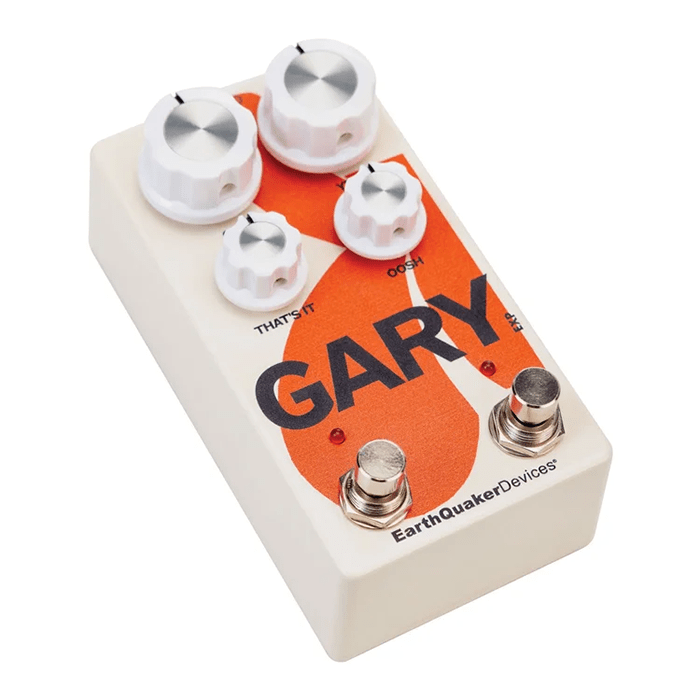

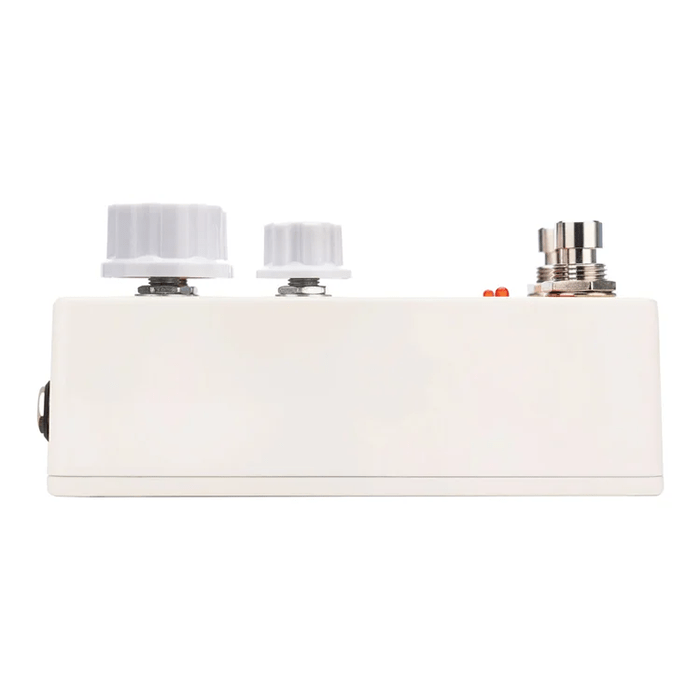

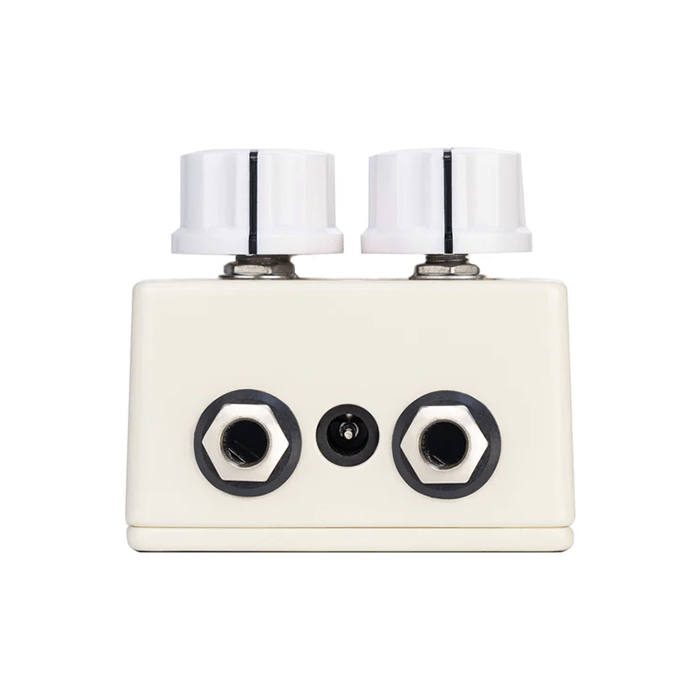

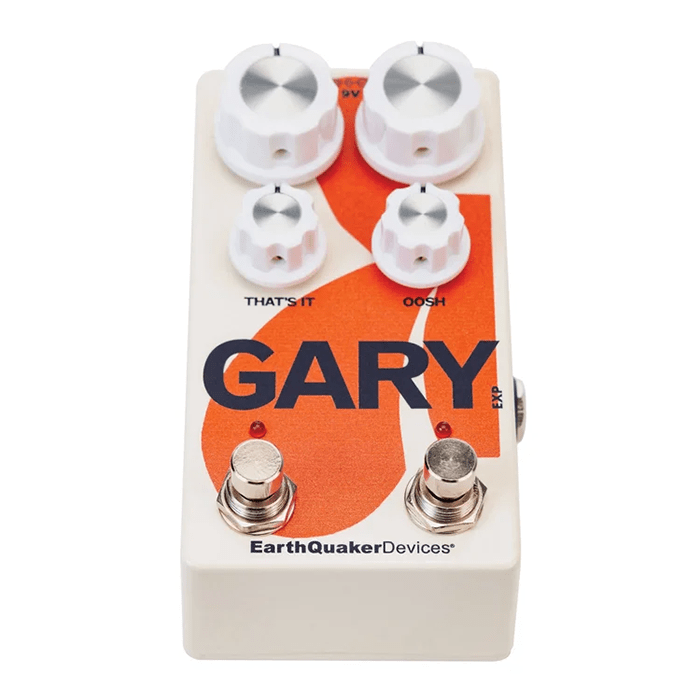

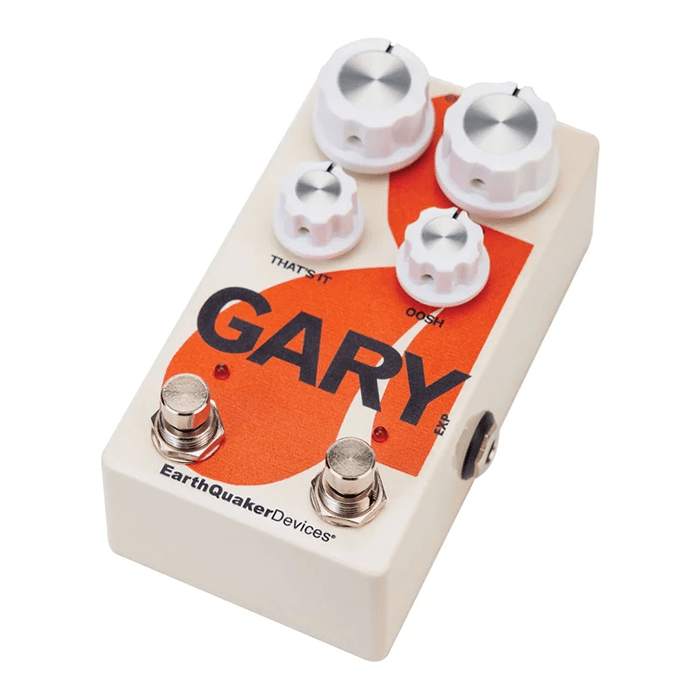

Gary merges two distinct voices in one pedal: organic overdrive for rhythm tone and envelope‑controlled fuzz that morphs with your touch. With relay bypass switching and expression input, it’s a dynamic tone machine.
SPECIFICATIONS
Dimensions
4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
Current Draw
20 mA
Fuzz Input Impedance
1 MΩ
Fuzz Output Impedance
<1 kΩ
Overdrive Input Impedance
500 kΩ
Overdrive Output Impedance
<1 kΩ
TRS Expression Pedal Wiring
Tip: Wiper
Ring: +3.3V
Sleeve: Ground
Switching
Relay-based true bypass with Flexi-Switch® Technology:
• Tap for latching
• Hold for momentary
Requires power to pass signal.
Power
Standard 9V DC power supply (2.1mm negative center barrel).
Use only pedal-specific, isolated power supplies. Do not run at higher voltages.
