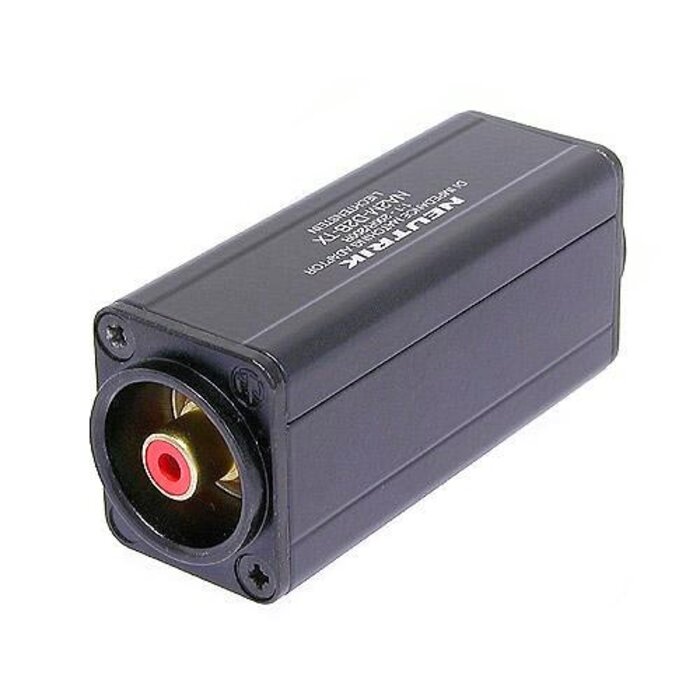

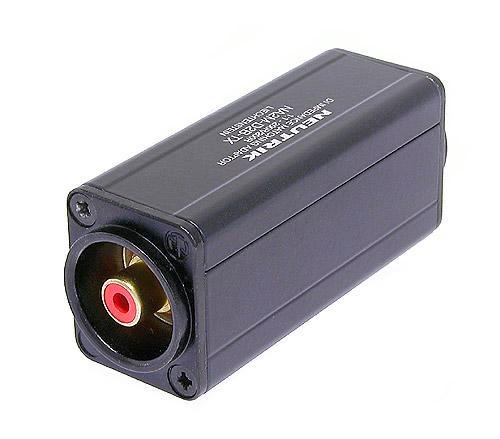

NeutrikNeutrik 3 Pole XLR Female To RCA/Phono Socket

The Neutrik NA2M-D2B-TX is a 3-pin XLR to RCA/phono miniature transformer balancing adapter. This is a low-cost solution for unbalanced/balanced line conversion and passive DI applications, where switching is required.

SPECIFICATIONS

• - The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
• - Rugged aluminium extrusion housing for best reliability
• - Color coding on all RCA types (Red on the NA2M-D2B-TX)
• - Connection Type: Adapter
• - Locking Device: Latch Lock
• - Audio transformer: 1:1
• - Impedance ratio: 200:200
• - Source/load impedance in Ohm: 200/2k, (600/10k)
• - Max. Input level (@ 50 Hz, 1% THD): -3 dBu
