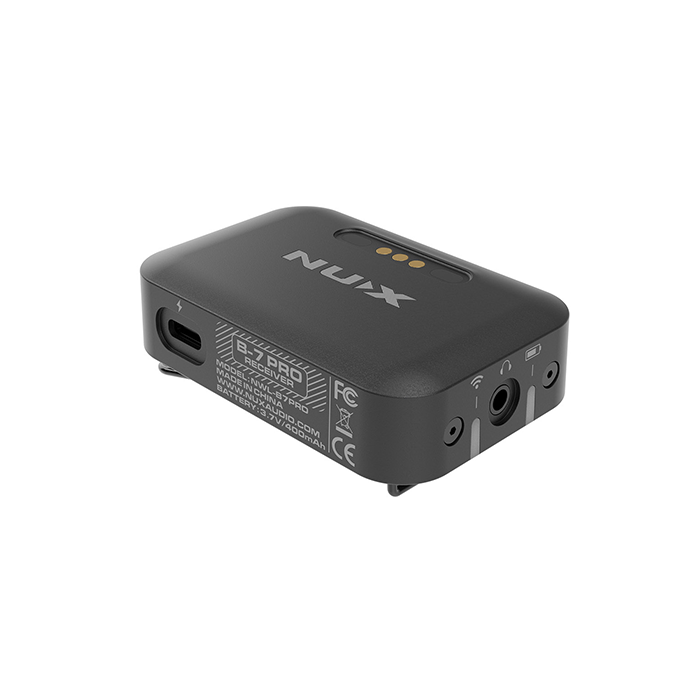

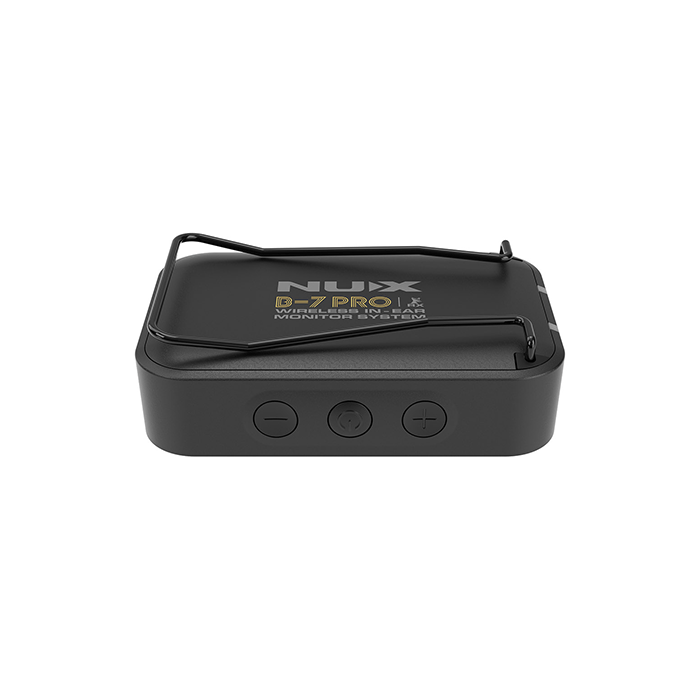

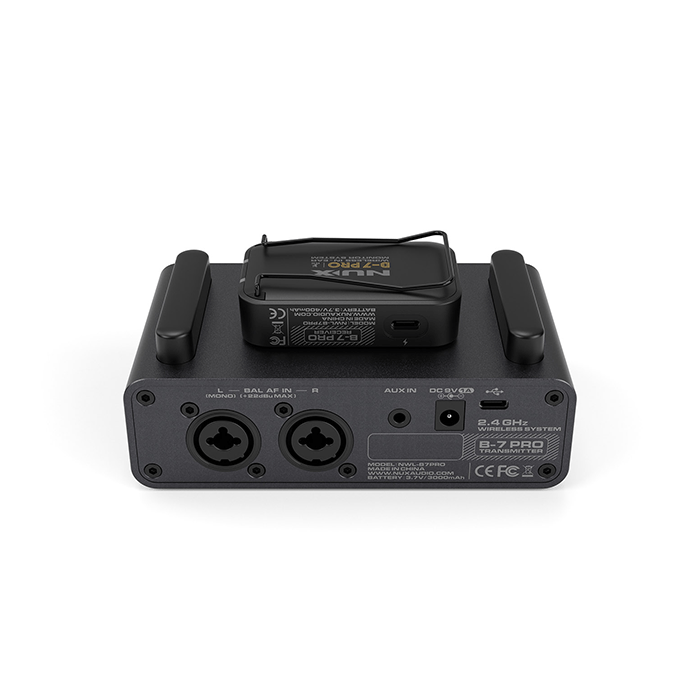

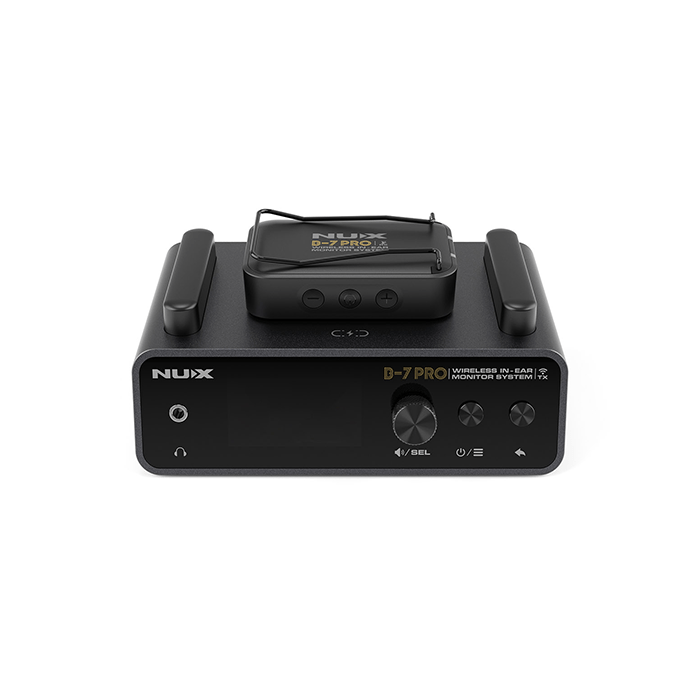

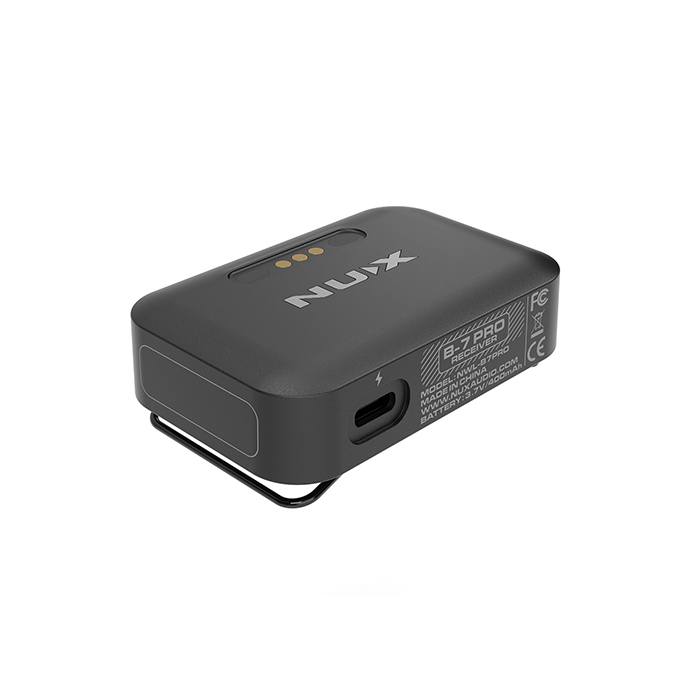

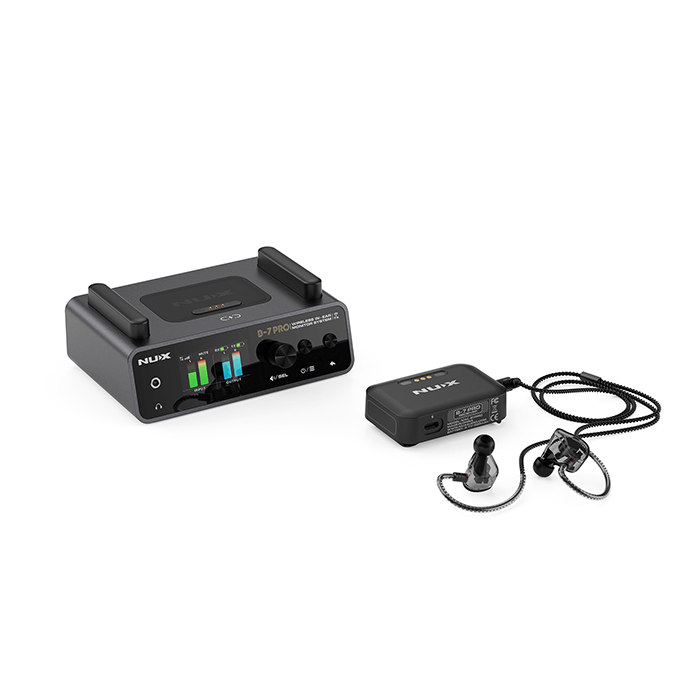

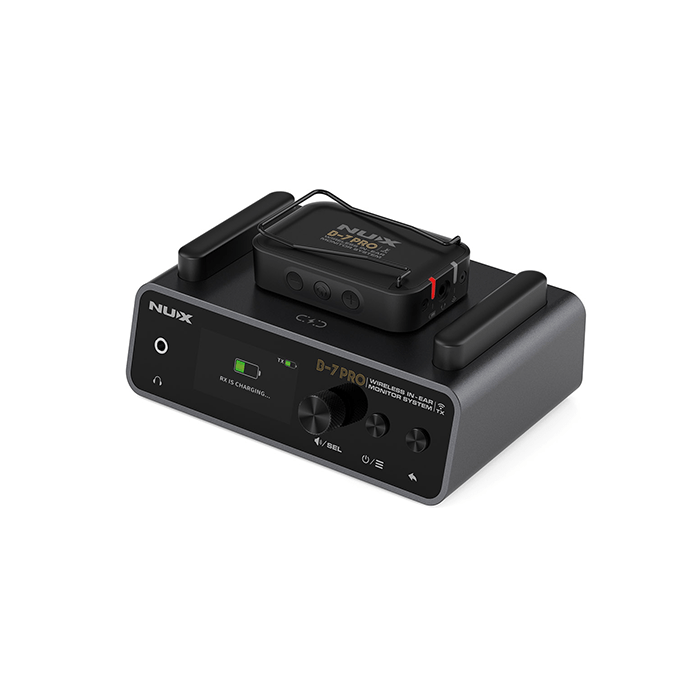

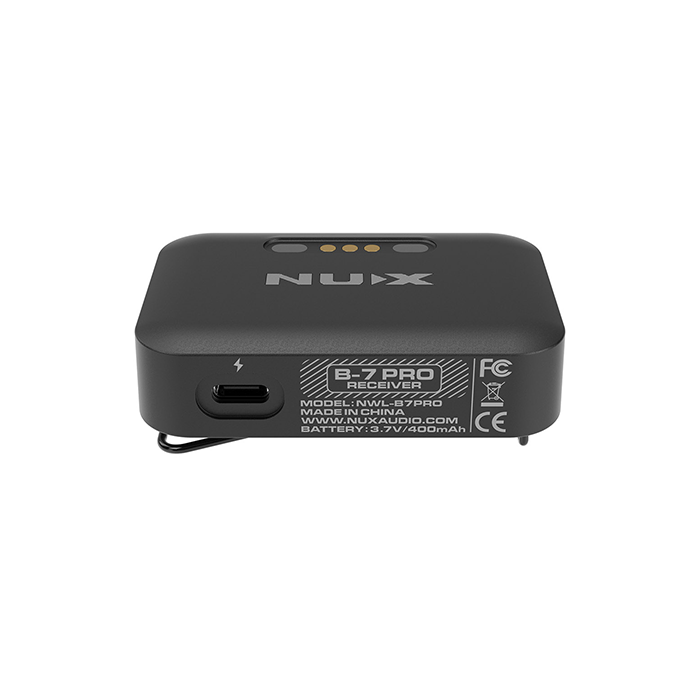

NUXWireless In-Ear Monitor System, 5,8 GHz
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
The NUX Wireless In-Ear Monitor System offers professional-grade sound with 24-bit/48kHz audio, ultra-low latency, and wide 20Hz–20kHz frequency response. Designed for musicians, it provides up to 6 hours of battery life, automatic power-off, and adjustable output levels for optimal performance.
SPECIFICATIONS
| Operating Frequency | Band: 2400-2483.5MHz |
| Transmit Mode | Frequency Hopping |
| RF Output Power | 10mW E.l.R.P. max |
| Audio Quality | 24bit/48kHz |
| Frequency Response | 20Hz - 20kHz |
| Latency | 7.33ms (low latency), 10.85ms (default), 14.33ms (safe setting) |
| Unbalanced Input Impedance | 10kΩ |
| Balanced Input Impedance | 20kΩ |
| AUX Input Level | 2.1 Vrms (8.7dBu) max |
| Balanced Input Level | 9.8 Vrms (22dBu) max |
| Headphone Output Impedance | Minimum 13Ω |
| Headphone Maximum Output Power | 57mW per channel (THD<0.1%, RLOAD=16Ω, 1kHz) |
| Channel Separation | -105dB |
| THD+N | <0.01% typical |
| Dynamic Range | 110dB A-weighted |
| Output Level Adjustment Range | Mute -86dB ~ +12dB |
| Auto-Off | Automatically turns off after 10 minutes of no connection or lost connection |
| Built-in Battery Capacity | Rechargeable Li-polymer (Transmitter 3.7V/3000mAh, Receiver 3.7V/400mAh) |
| Battery Lifetime | TX: Up to 6 hours / RX: Up to 6 hours |
| Power Requirements | DC 9V, 1A min, negative tip power supplies (Transmitter) |
| Operation Range | Up to 50m (165 feet) maximum |
| TX Dimensions | 140 x 97 x 53mm (L x W x H) |
| TX Weight | 525g |
| RX Dimensions | 47 x 71 x 22mm (L x W x H) |
| RX Weight | 51g |
