Description
Read moreRead less

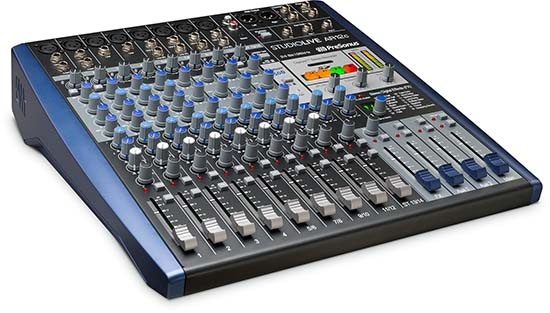

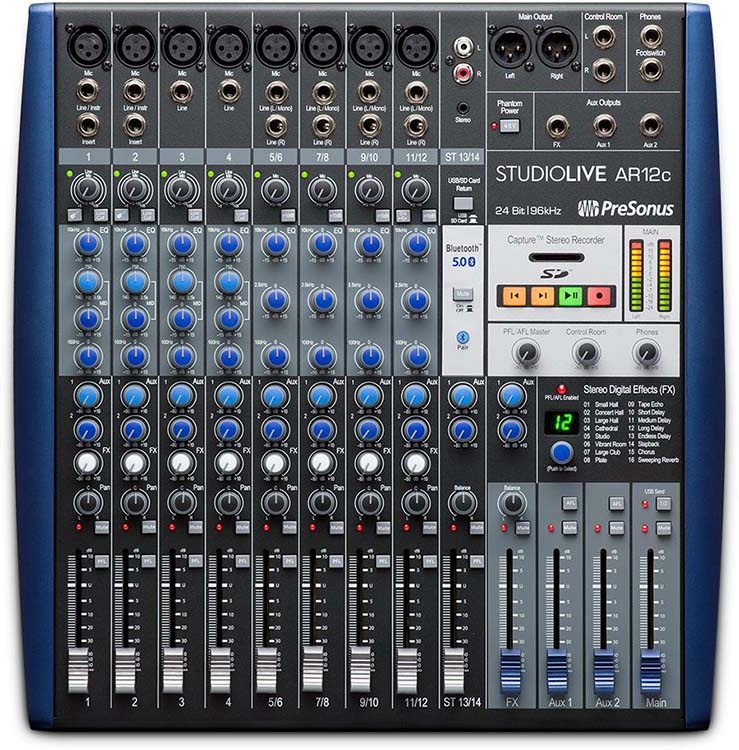

The Presonus 14 Channel USB C Hybrid Rec Mix is a simple and reliable mixer for recording and live sound. It offers eight XMAX mic preamps, a 14x4 USB C interface and clean analog control. The Super Channel allows fast input from Bluetooth, RCA or portable devices. The built in effects add depth with easy to use presets. You can record to your computer or straight to an SD card.
SPECIFICATIONS
| Phantom Power | +48 VDC |
| Signal Level Led | Signal: -30 dBFS (Pre-EQ) Clip: -3.0 dB Before Clip (Pre or Post-EQ) |
| Voltage Requirements | 100-230 VAC, 50-60 Hz |
| Color | Blue |
| Product Name | StudioLive® AR12c Analog Mixer, Blue |
| Series | StudioLive® |
| Digital Audio USB Recording Port | USB 2.0 |
| Instrument Input Connection Type | 1/4” TS Female, Unbalanced, Hi-Z |
| Instrument Inputs Dynamic Range | > 108 dB (Mid Gain, Unweighted) |
| Instrument Inputs Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Instrument Inputs Gain Range | 43 dB, ±1 dB (+12 to +55 dB) |
| Instrument Inputs Maximum Level | +9 dBu ±1.0 dB (Minimum Gain, 1 [email protected]% THD + N) |
| Line Input Connection Type | 1/4" TRS, Balanced |
| Line Inputs Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Line Inputs Gain Range | Mono: 40 dB, ± 1 dB, Stereo: 0 dB or 10 dB |
| Line Inputs Impedance | 10 kΩ (Balanced) |
| Line Inputs Maximum Level | +26 dBu ±1.0 dB (Minimum Gain, 1 [email protected]% THD + N) |
| Line Inputs Signal To Noise Ratio | 85 dB (+4 dBu) |
| Line Inputs Total Harmonic Distortion | <0.01% (1 kHz, -1 dBFS, A-Weighted) |
| Microphone Preamp Common Mode Rejection Ratio | 65 dB (1 kHz, +55 dB Gain) |
| Microphone Preamp Equivalent Input Noise | <128 dBu |
| Microphone Preamp Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Microphone Preamp Gain Control Range | 43 dB (+12 to +55 dB) |
| Microphone Preamp Input Impedance | 1 kΩ |
| Microphone Preamp Maximum Input Level | +9 dBu ± 1.0 dB (Unity Gain) |
| Microphone Preamp Signal To Noise Ratio | 94 dB (+4 dBu) |
| Microphone Preamp Total Harmonic Distortion | <0.01% (Minimum Gain, A-Weighted) |
| Media Storage Capacity | SD Card: 2 GB; SDHC Card: 32 GB |
| Product Depth | 15.56" (397 mm) |
| Product Height | 3.5” (90 mm) |
| Product Height/Length | 3.5” (90 mm) |
| Product Weight | 11.9 lbs (5.4 kg) |
| Product Width | 15" (381mm) |
| Refinement Weight | 25-under |
| Power Cable | IEC |
| Recommended Ambient Operating Temperature | 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit |
| Recording File Format | Stereo WAV |
| Supported Media Format | FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card |
| Supported Sample Rates | 44.1, 48, 88.2, 96 kHz |
| Headphone Outputs Dynamic Range | >103 dB (A-Weighted) |
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Headphone Outputs Maximum Output | 150 mW /Channel at 60 Ω |
| Headphone Outputs Total Harmonic Distortion | <0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted) |
| Line Outputs Connection Type | 1/4" TRS, Balanced |
| Line Outputs Maximum Output Level | +18 dBu |
| Line Outputs Output Impedance | 100 Ohms |
| Main And Line Outputs Dynamic Range | >108 dB (A-wtd) |
| Main And Line Outputs Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Main And Line Outputs Total Harmonic Distortion | <0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted) |
| XLR Outputs Maximum Output Level | +24 dBu, ±1.0 dB |
| XLR Outputs Output Impedance | 100 Ohms |
| Crosstalk (Adjacent Channels) | -85 dBu (Reference = +4 dBu, 20 Hz to 20 kHz, Unweighted) |
| Digital Audio Bit Depth | 24 |
| Digital Audio Dynamic Range | 105 dB (A-Weighted, 48 kHz) |
| SD Recorder Bit Depth | Recording: 24 Bit, Playback: 16 or 24 Bit |
| SD Recorder Sampling Rate | 44.1 kHz |
