Description
Read moreRead less

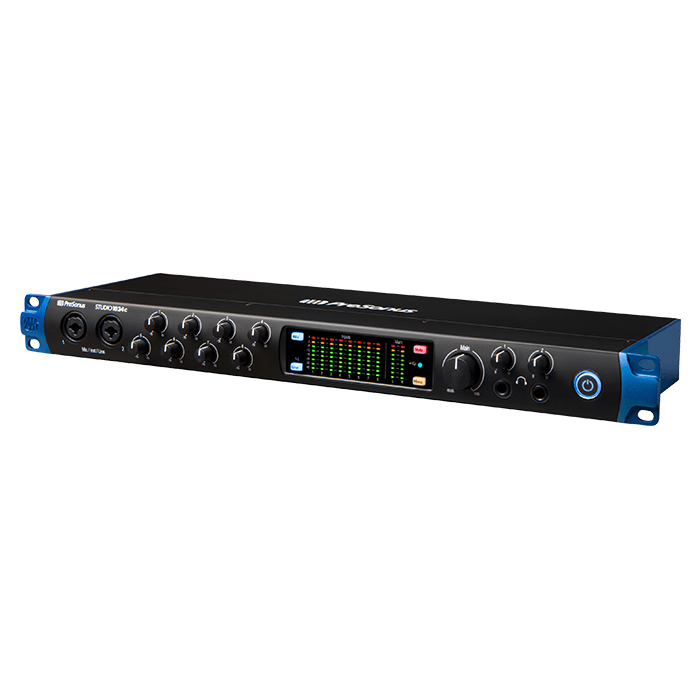

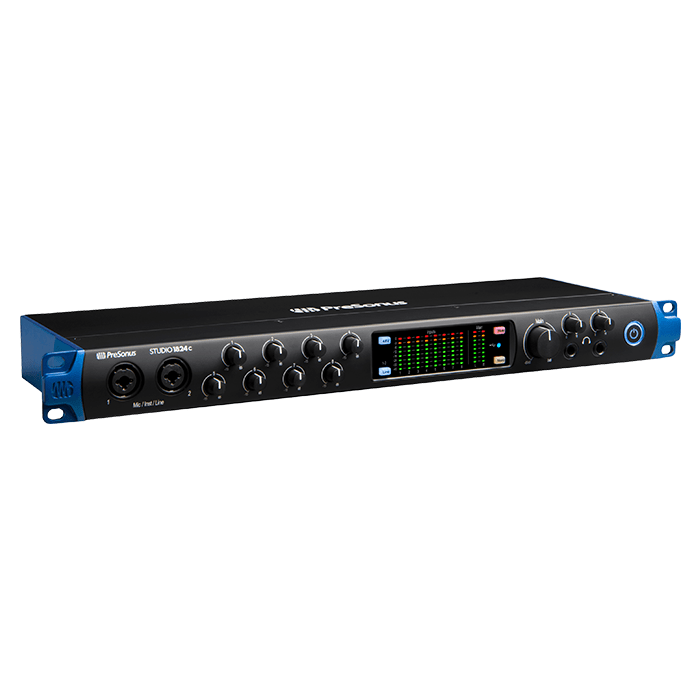

PreSonus' Studio 1824c is a high-channel audio interface designed for recording large sessions. It features eight XMAX analog mic preamps and 24-bit 192 kHz conversion. The interface can record any session with two low-noise instrument preamps, balanced line-level inputs, and an ADAT input. It captures complex musical harmonics with no distortion, delivers high headroom, deep lows, smooth highs, and rich overall sound. It also features professional input and output meters, a flexible DSP mixer, and front-panel controls.
FEATURE
- Up to 18 inputs/20 outputs simultaneously (8x8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
- 2 balanced ¼-inch TRS main outputs and 8 balanced ¼-inch TRS line outputs for monitor mixing, all DC coupled for sending control voltages
- 2 stereo headphone outputs with individual level controls
- Stereo S/PDIF digital I/O and MIDI In/Out
- 18x8 onboard DSP monitor mixer
- Front-panel level controls plus Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)
- 10 ladder-style 8-LED level meters (8 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Includes Studio One Artist®, Studio Magic Software Suite, and Ableton® Live Lite
SPECIFICATIONS
| Electronics | |
|---|---|
| Connectivity | USB-C® |
| Headphone Jack | 1/4" TRS Active Stereo |
| Inputs | Eight - Eight Combo Mic/Instrument/Line Inputs (XLR Female Balance, 1/4" TS Female Unbalanced (Inst)) |
| Line Out | Four - 1/4" TRS Balanced, DC Coupled |
| Phantom Power | +48 VDC |
| Voltage Requirements | 100-240 VAC, 50-60 Hz |
| General | |
| Color | Black |
| Product Name | Studio 1824c, Black, 120V |
| Series | Studio |
| Instrument Inputs | |
| Dynamic Range | 112 dB (A-Weighted, Minimum Gain) |
| Frequency Response | 20 Hz - 20 kHz (Minimum Gain) |
| Gain Range | 80 dB |
| Maximum Level | +15 dBu (Unbalanced, Minimum Gain) |
| Line Inputs | |
| Dynamic Range | 112 dB (A-Weighted, Minimum Gain) |
| Frequency Response | 20 Hz - 20 kHz (Unity Gain) |
| Gain Range | 40 dB |
| Impedance | 10 kΩ |
| Maximum Level | +21 dBu (Balanced, Minimum Gain) |
| Total Harmonic Distortion | 0.005% (1 kHz, +18 dBu, Minimum Gain) |
| Microphone Preamp | |
| Connection Type | XLR Female (Combo), Balanced |
| Dynamic Range | 110 dB (A-Weighted, Minimum Gain) |
| Equivalent Input Noise | -128 dBu (A-Weighted, 20 kHz BW, Rs=150Ω, Maximum Gain) |
| Frequency Response | 20 Hz - 20 kHz (Unity Gain) |
| Gain Control Range | 80 dB |
| Input Impedance | 1.4 kΩ |
| Physical Dimensions | |
| Depth | 5.5" (140 mm) |
| Height | 1.75" (44.45 mm) |
| Width | 19" (483mm) |
| Power | |
| Power Cable | 12 VDC, External Power Supply |
| Digital Audio | |
| Supported Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Bit Depth | 24 Bit |
| Dynamic Range | 114 dB |
| Headphone Outputs | |
| Dynamic Range | 103 dB (A-weighted, 1 kHz, Unity Gain) |
| Frequency Response | 20 Hz - 20 kHz (Unity Gain) |
| Impedance Working Range | 32Ω to 600Ω |
| Maximum Output | 150 mW/Channel (60Ω Load) |
| Total Harmonic Distortion | 0.250% (1 kHz, 150 mW, Unity Gain) |
| Main & Line Outputs | |
| Connection Type | 1/4" TRS Female |
| Dynamic Range | 108 dB (A-Weighted, Unity Gain) |
| Frequency Response | 20 Hz - 20 kHz (Unity Gain) |
| Maximum Level | +18 dBu (Balanced) |
| Total Harmonic Distortion | 0.004% (1 kHz, -1 dBFS, Unity Gain) |
| Main Outputs Connection Type | 1/4" TRS Female |
