Roland's ground-breaking JX-8P advanced hybrid synthesis in 1985 with a captivating new analog-digital voice. Top session musicians adopted the instrument right once, permanently incorporating its cozy pads, glistening chorus, and crystalline textures into the era's most well-known songs. The JX-08 recreates the distinctive sound of this coveted classic in exquisite detail and adds potent new effects, a polyphonic sequencer, and other features.
Features
- - Authentic JX-8P sound and behavior
- - PG-800 programmer function included
- - Includes 32 presets from the original JX-8P plus 111 new presets
- - 17 new effect types including JUNO-106 chorus, SDD-320 reverb, lo-fi comp, super filter, pitch shifter, and more
- - Two-part, 64-step, eight-note (per part) polyphonic sequencer with motion recording, random pattern generator, and memory for 128 patterns
- - Onboard arpeggiator
- - Expanded polyphony compared to the original hardware, up to 20 voices
- - Two-part multitimbral for playing multiple patches with dual and split capabilities
- - USB-C audio/MIDI interface, full-size MIDI I/O, and external clock input
- - Portable design for mobile music making
- - High-quality construction with metal front panel
- - Powered via batteries (4 x AA) or USB-C
- - Control information can be sent and received via MIDI and USB-C
- - Built-in powered mini speaker for instant enjoyment

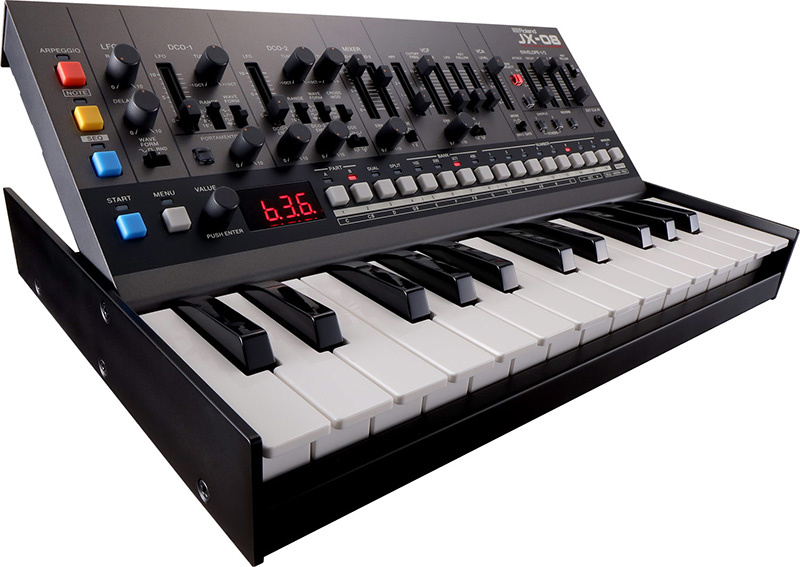

- - Compatible with optional DK-01 Boutique Dock or K-25m Keyboard Unit
SPECIFICATIONS
| User Memory | Sound Patch: 256 |
| Pattern: 128 | |
| Controllers | Rear Panel |
| Power switch | |
| VOLUME knob | |
| LFO Section | |
| RATE knob | |
| DELAY TIME knob | |
| WAVE FORM switch | |
| DCO-1 Section | |
| LFO slider | |
| TUNE knob | |
| RANGE switch | |
| WAVE FORM switch | |
| DCO-2 Section | |
| LFO slider | |
| TUNE knob | |
| FINE TUNE knob | |
| RANGE switch | |
| WAVE FORM switch | |
| CROSS MOD knob | |
| DCO-1 ENV knob | |
| DCO-2 ENV knob | |
| MODE switch | |
| MIXER Section | |
| DCO-1 slider | |
| DCO-2 slider | |
| ENV knob | |
| MODE switch | |
| VCF Section | |
| HPF slider | |
| CUTOFF FREQ slider | |
| RES slider | |
| LFO slider | |
| KEY FOLLOW slider | |
| ENV knob | |
| MODE switch | |
| VCA Section | |
| LEVEL slider | |
| MODE switch | |
| ENVELOPE-1/2 Section | |
| ENV SELECT 1, 2 buttons | |
| ATTACK slider | |
| DECAY slider | |
| SUSTAIN slider | |
| RELEASE slider | |
| KEY FOLLOW switch | |
| PORTAMENTO Section | |
| MODE button | |
| TIME knob | |
| EFFECT Section | |
| CHORUS 1, 2 buttons | |
| REVERB button | |
| ARPEGGIO button | |
| NOTE button | |
| SEQ button | |
| START button | |
| MENU button | |
| VALUE knob | |
| PART A, B buttons | |
| DUAL button | |
| SPLIT button | |
| BANK 1(5)--4(8) buttons | |
| NUMBER 1--8 buttons | |
| MANUAL button | |
| Effects | Chorus: 3 |
| Delay: 4 | |
| Overdrive | |
| FUZZ | |
| Drive | |
| Bit crusher | |
| LOFI Comp | |
| Phaser: 2 | |
| Filter | |
| Pitch Shifter: 2 | |
| Step Sequencer | 2 part |
| 64 steps | |
| 8 notes per part (Polyphonic) | |
| Display | 7 segments, 4 characters (LED) |

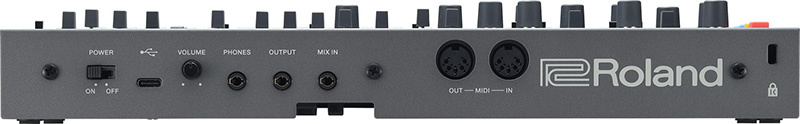

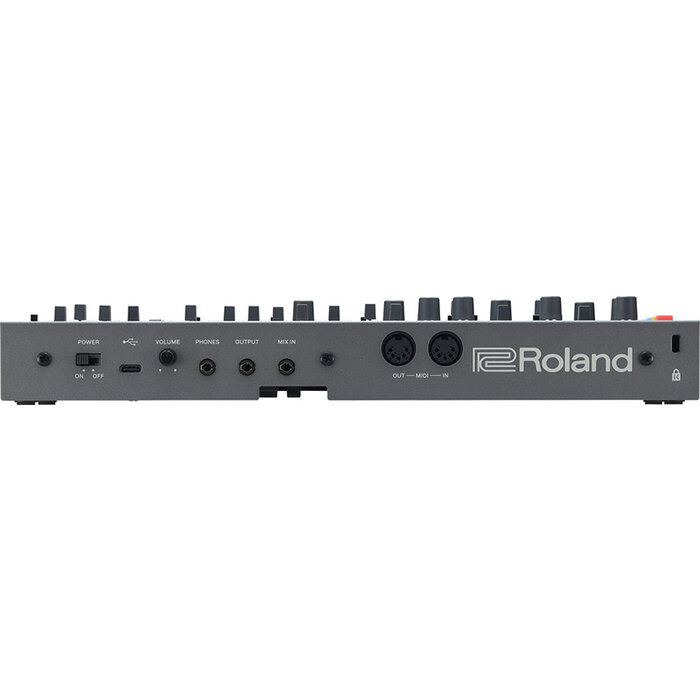

| Connectors | EXT CLOCK IN jack: Mono miniature phone type |
| PHONES jack: Stereo miniature phone type | |
| OUTPUT jack: Stereo miniature phone type | |
| MIX IN jack: Stereo miniature phone type | |
| MIDI (IN, OUT) connectors | |
| USB port: USB Type-C(R) (Audio, MIDI) | |
| Power Supply | |
| Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4 | |
| USB bus power | |
| Current Draw | 500 mA (USB bus power) |
| Expected battery life under continuous use | Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.) |
| * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use. | |
| Accessories | Quick Start |
| Leaflet "USING THE UNIT SAFELY" | |
| Alkaline battery (AA, LR6) x 4 | |
| Options (sold separately) | Keyboard unit: K-25m |
| Boutique Dock: DK-01 | |
| SIZE AND WEIGHT | |
| Width | 300mm | 11-13/16 " |
| Depth | 128mm | 5-1/16" |
| Height | 47mm | 1-7/8" |
| Weight (including batteries) | 895g | 2 lbs |
