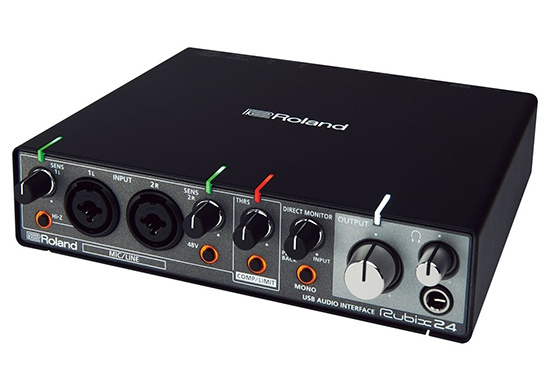

RolandRUBIX24 USB Audio Interface 2In/4Out
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
The Roland RUBIX24 USB Audio Interface 2In/4Out delivers high-resolution 24-bit/192kHz audio with two low-noise mic preamps and a Hi-Z input for guitars. It features a built-in hardware compressor/limiter, MIDI In/Out ports, and low-latency class-compliant drivers for seamless recording on Mac, PC, or iPad. Its robust metal construction, noise-shielded design, and clear indicator lights ensure reliable performance in studios and live setups.
SPECIFICATIONS
| Number of Audio Record/Playback Channels | Record: 2 channels Playback: 4 channels |
| Signal Processing | PC interface: 24 bits AD/DA conversion: 24 bits |
| Sampling Frequency | AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz |
| Interface | Hi-Speed USB MIDI IN, OUT |
| Connectors | INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max) INPUT (1L, 2R) jacks: 1/4-inch TRS phone type (balanced) PHONES jack: Stereo 1/4-inch phone type OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced) MIDI (IN, OUT) connectors USB port: USB Type B DC 5V port: USB Type micro B |
| Controllers | SENS 1L, 2R knobs, Hi-Z switch, 48V switch, THRS knob, COMP/LIMIT switch, DIRECT MONITOR knob, MONO switch, OUTPUT knob, PHONES knob, POWER SOURCE switch, LOOPBACK switch, COMP/LIMIT TYPE switch, GROUND LIFT switch, PHONES SOURCE switch |
| Indicators | Level indicators (1L, 2R), Level indicator (COMP/LIMIT), POWER indicator, Hi-Z indicator, 48V indicator, COMP/LIMIT indicator |
| Nominal Input Level | INPUT (1L, 2R) connectors (XLR type): -60 to -12 dBu INPUT (1L, 2R) jacks (1/4-inch TRS): -44 to +4 dBu |
| Maximum Input Level | INPUT (1L, 2R) connectors (XLR type): +2 dBu INPUT (1L, 2R) jacks (1/4-inch TRS): +18 dBu |
| Nominal Output Level | OUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced) |
| Maximum Output Level | OUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced) |
| PHONES Maximum Output Power | 20 mW + 20 mW (L + R, 47 ohms load) |
| Headroom | 14 dB |
| Input Impedance | INPUT (1L, 2R) connectors (XLR type): ≥ 4 kΩ (balanced) INPUT (1L, 2R) jacks (1/4-inch TRS): ≥ 15 kΩ (balanced) INPUT (1L) jack (1/4-inch phone type *Hi-Z): ≥ 500 kΩ |
| Output Impedance | OUTPUT (1L, 2R, 3L, 4R) jacks: 2 kΩ (balanced) PHONES jack: 47 ohms |
| Residual Noise Level | INPUT (1L, 2R) → OUTPUT (1L, 2R): -94 dBu typ. |
| Dynamic Range | AD block INPUT (1L, 2R) jacks: 104 dB typ. DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ. |
| Power Supply | Supplied from the computer via USB, DC 5V |
| Current Draw | 500 mA |
| Operating System | Windows 7 / 8 / 8.1 / 10, Mac OS X 10.10 or later, iOS 9 or later |
| Dimensions | 183 (W) x 165 (D) x 46 (H) mm | 7-3/16 (W) x 6-1/2 (D) x 1-13/16 (H) inches |
| Weight | 1.2 kg | 2 lbs 11 oz (main unit only) |
| Accessories | Setup Guide, Leaflet "USING THE UNIT SAFELY", USB cable |
