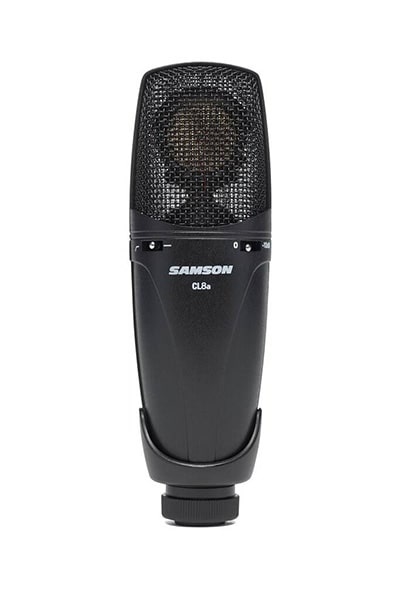

SamsonCL8A Large-Diaphragm, Multi-Pattern Condenser Mic
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
The Samson CL8A Large-Diaphragm, Multi-Pattern Condenser Mic captures detailed sound with dual shock-mounted 1.1"" capsules and gold-sputtered diaphragms. It offers cardioid, bidirectional, and omnidirectional pickup patterns for versatile recording. A wide 20 Hz–20 kHz frequency response, switchable high-pass filter, and 10 dB pad handle a variety of sources. Phantom-powered and built with solid die-cast construction, the CL8A is reliable for home studios, project studios, and professional environments.
FEATURES
- Dual 1.1" internally shock-mounted capsule with 4-micron thin gold-sputtered diaphragms
- Selectable cardioid, bidirectional, and omnidirectional pickup patterns
- 20 Hz – 20 kHz frequency response
- Switchable high-pass filter, 12 dB per octave at 100 Hz
- Switchable 10 dB pad for handling extremely high SPL
- 36–52 Volt phantom power operation
- Solid die-cast construction
SPECIFICATIONS
| Element | Condenser |
| Diaphragm Thickness | 4 microns |
| Frequency Response | 20 Hz – 20 kHz |
| Polar Pattern | Omnidirectional, Unidirectional (Cardioid), Bidirectional |
| Impedance | 200 ohms balanced |
| Minimum Load Impedance | 1000 ohms |
| Sensitivity (Omni, Cardioid, Figure-8) | -40 dBV/Pa, -35 dBV/Pa, -40 dBV/Pa |
| Max SPL Pad Off (Omni, Cardioid, Figure-8) | 147 dB SPL, 142 dB SPL, 147 dB SPL |
| Signal-to-Noise | (Omni, Cardioid, Figure-8) Equivalent Noise Level 17 dB |
| Microphone Connector | 3-pin, gold-plated XLR |
| Power Supply | 48 VDC ± 3 V |
| Accessories | Mic swivel |
| Dimensions | ø6.9” x 2.1” / ø174mm x 53 mm |
| Weight | 1.14 lb / 0.52 kg |
