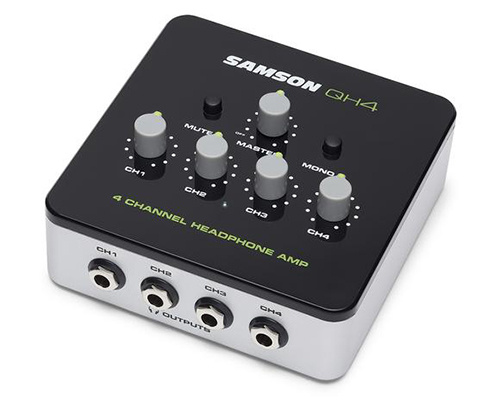

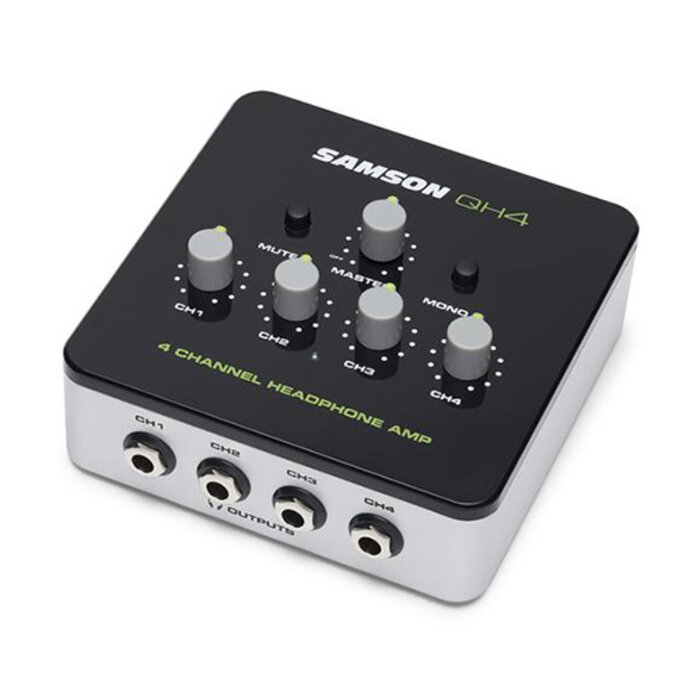

SamsonQh4 4 Channel Headphone Amplifier
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

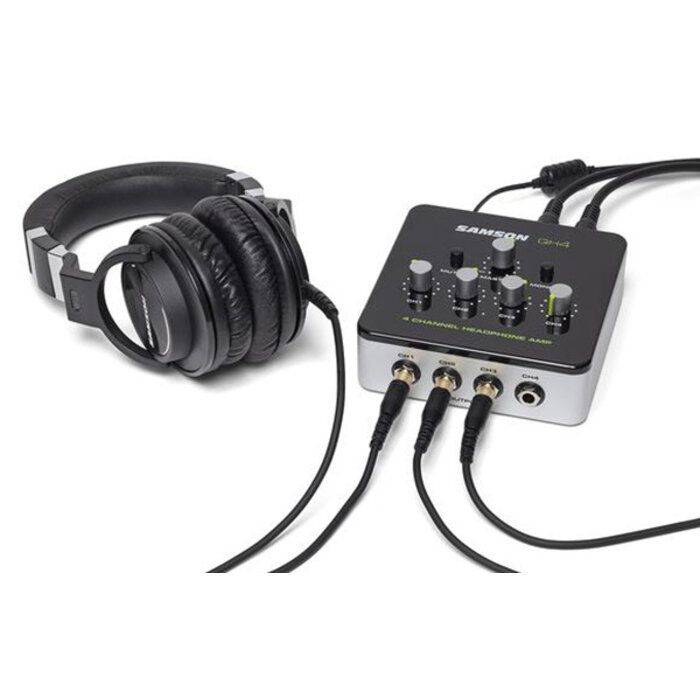

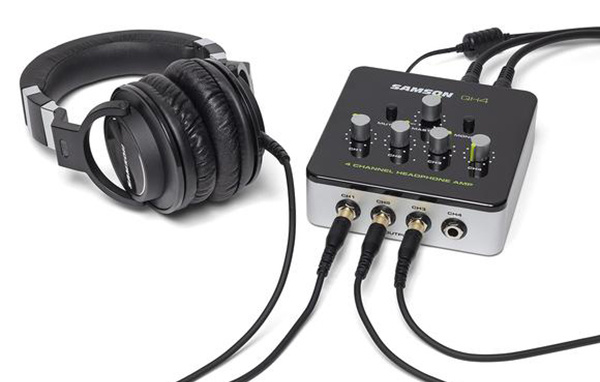

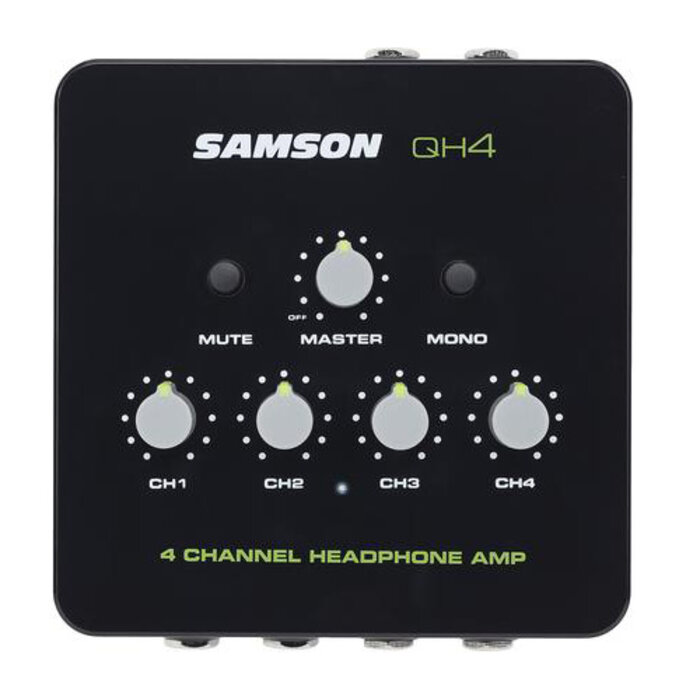

The Samson QH4 4 Channel Headphone Amplifier delivers audio to four headphones at the same time. Each output has its own volume control. It supports balanced inputs, Aux in and out, and can daisy chain multiple units. The master mute and mono-summing switches give extra control over your mix. Its small and portable design is ideal for studios, desktop workstations, laptops, or on-the-go recording, with low noise and wide frequency response.
FEATURES
- 4-channel stereo headphone distribution amplifier

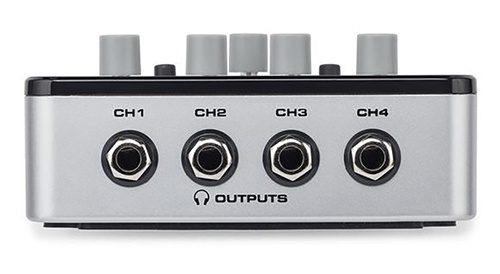

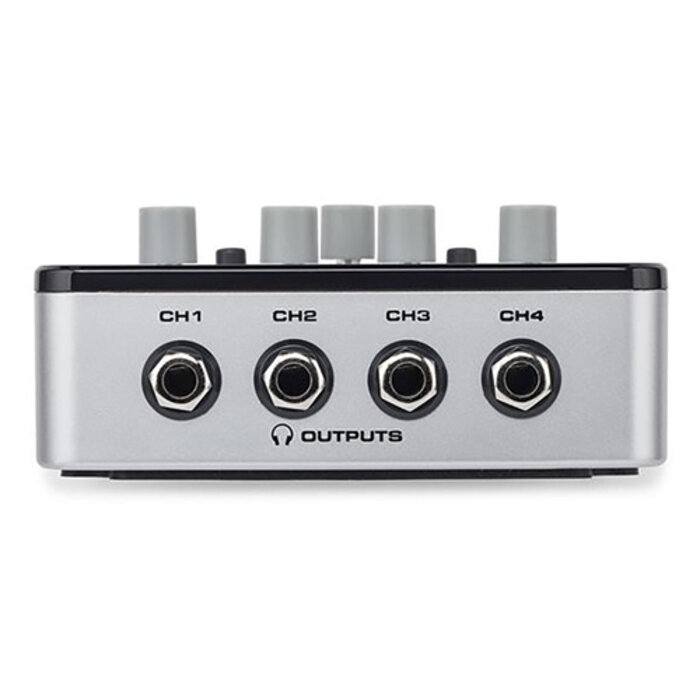

- Four independent 1/4" stereo headphone channels
- Individual volume control on each headphone channel
- Two balanced 1/4" input connectors
- Stereo 1/8" Aux input and output
- Master Mute and Mono-summing switches
SPECIFICATIONS

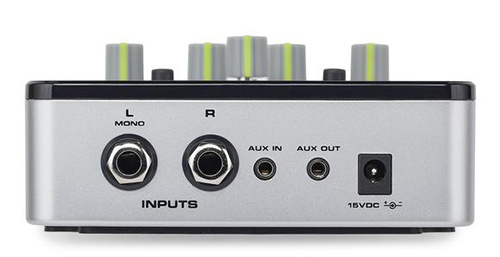

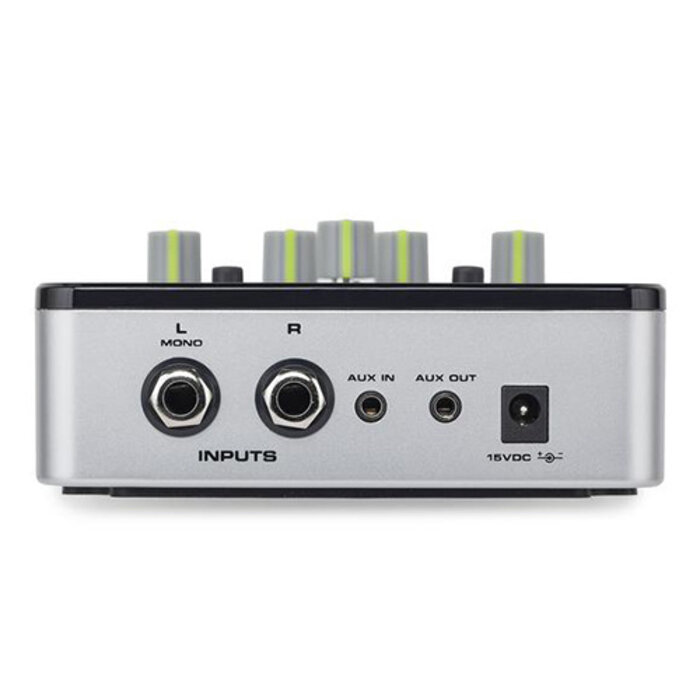

| Inputs | 2 x 1/4" balanced, stereo 1/8" unbalanced TRS |
| Outputs | 4 x stereo 1/4" unbalanced, stereo 1/8" unbalanced TRS |

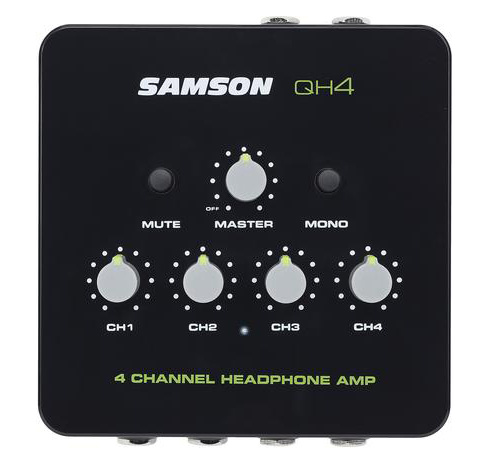

| Controls | Master volume, master Mute, master Mono, 4 x Channel volume |
| Noise Floor | -114 dBu, 22 kHz BW unweighted |
| Maximum Output | 8.3 dBu, 1% THD+N, loaded 16Ω |
| Output Power | 282 mW per side / 564 mW per channel, loaded 32Ω |
| Dynamic Range | 22 dB, 22 kHz BW |
| Frequency Response | 17 Hz – 47 kHz (-3 dB) |
| Power | 15 V DC adapter |
