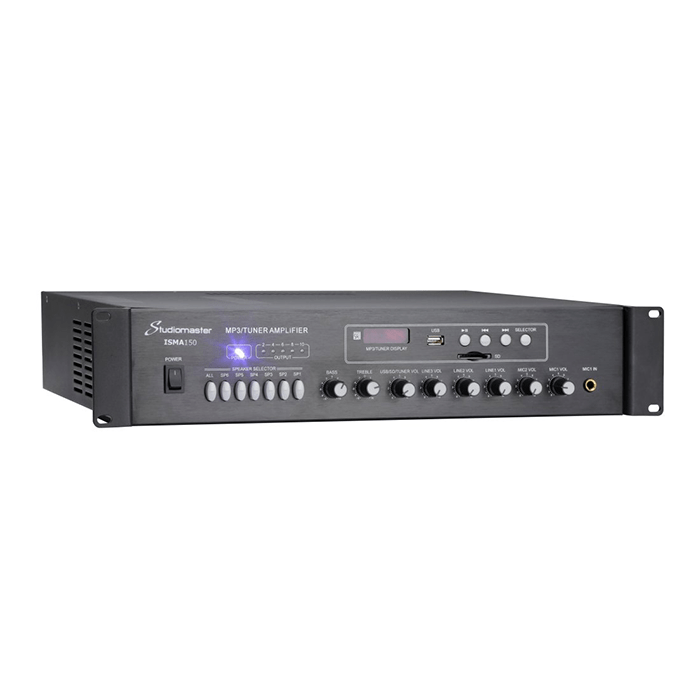

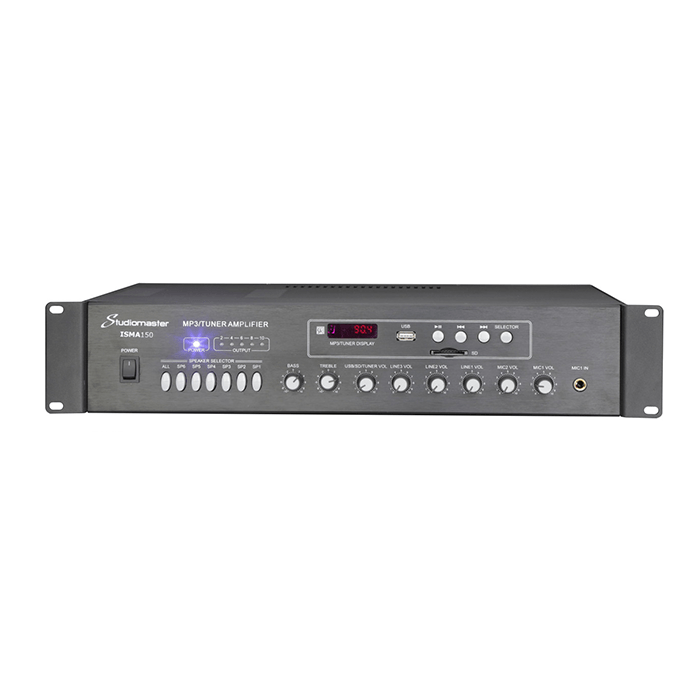

Studiomaster150W 100V Line Mixer Amp
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less
The Studiomaster 150W 100V Line Mixer Amp is a small yet powerful amplifier that can be used in professional audio systems. It provides 150W of clear sound, and it is suitable for commercial applications, public address, and music background systems.
It has 1 mic and 1 line input and 6-zone 70/100V outputs for increased flexibility of zone control. The in-built media player has a 4.3” touchscreen, USB MP3, FM tuner, and Bluetooth audio, which means that there are several streaming choices. Independent input-level controls, 2-band EQ, and master-volume control provide the ability to control audio with great accuracy.
There is weekly scheduling and more than 100 daily points, which can be fully automated or managed manually, ideal for businesses looking for sound management that does not require hands.
SPECIFICATIONS
| Rated Power | 150W |
| Speaker Outputs | 70V/100V Line |
| AUX Output | 100Ω, 1V (0dBV) |
| Mic Input | 600Ω, 8mV (±10%) |
| Line Input | 10kΩ, 300mV (±10%) |
| Mic Frequency Response | 40Hz-16kHz (±3dB) |
| Line Frequency Response | 50Hz-20kHz (±3dB) |
| Harmonic Distortion | <0.5% (1kHz, 1/3 rated power) |
| SNR (Mic) | 70dB |
| SNR (Line) | 80dB |
| EQ Bass | ±10dB (100Hz) |
| EQ Treble | ±10dB (10kHz) |
| Protection | AC fuse, DC output, overload |
| Power Supply | AC220-240V / 50-60Hz |
| Power Consumption | 220W |
| Size (LxWxH) | 418x338x88mm |
