Description

The MG Series embodies this pursuit of design excellence and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles let you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled in its class.

SPECIFICATIONS

On-board processors	SPX algorithm: 24 programs, PARAMETER control: 1, FOOT SW: 1 (FX RTN CH on/off)
Phantom Power	+48 V
Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono [MIC/LINE]: 4 Mono/Stereo [MIC/LINE]: 2 Stereo [LINE]: 2
Output Channels	STEREO OUT: 2 MONITOR OUT: 1 PHONES: 1 AUX SEND: 2 GROUP OUT: 2
Bus	Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
Input Channel Function	PAD: 26 dB (Mono) HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter	2x12-segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Total Harmonic Distortion	0.03% @ +14dBu (20 Hz to 20kHz), GAIN knob: Min 0.005% @ +24dBu (1kHz), GAIN knob: Min
Frequency Response	+0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & Noise Level	Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: Min) Crosstalk: -78 dB
Power Requirements	AC 100 – 240 V, 50 / 60 Hz
Power Consumption	22 W
Dimensions	Width: 308 mm (12.1") Height: 118 mm (4.6") Depth: 422 mm (16.6")
Net Weight	4.2 kg (9.3 lbs.)
Accessories	Included: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information Optional: Rack-mount kit RK-MG12, Foot Switch FC5
Others	Operating Temperature: 0 to +40˚C

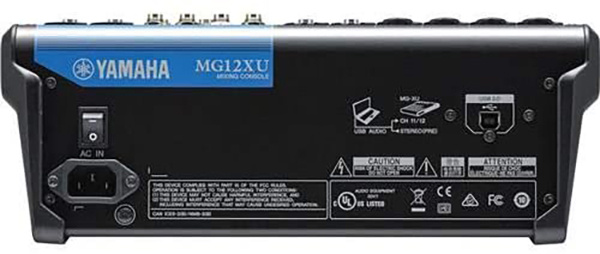

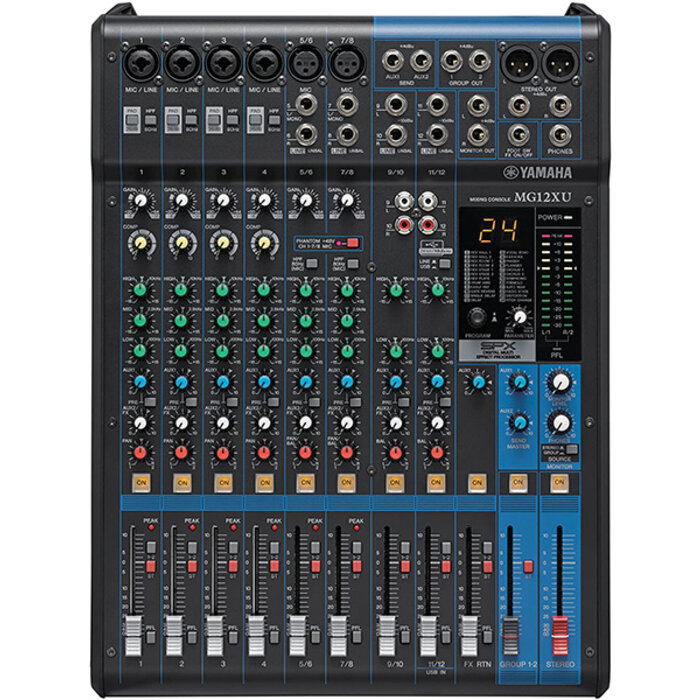

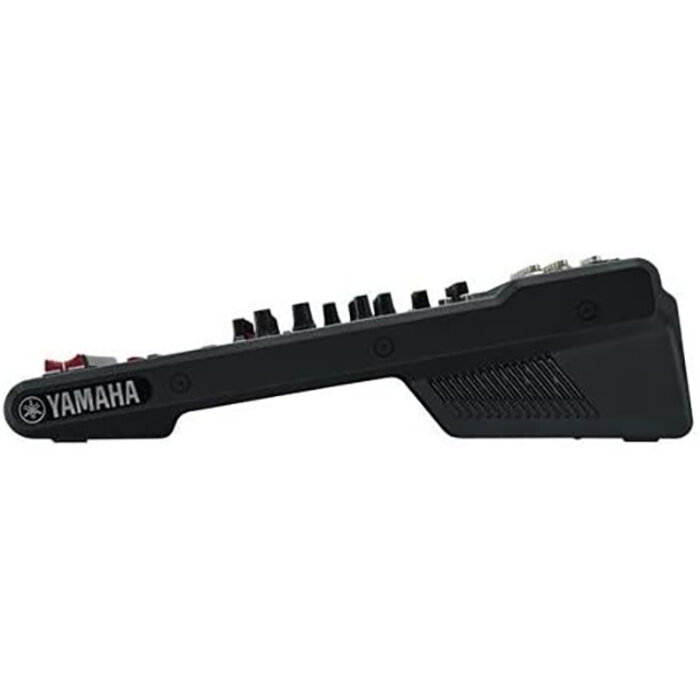

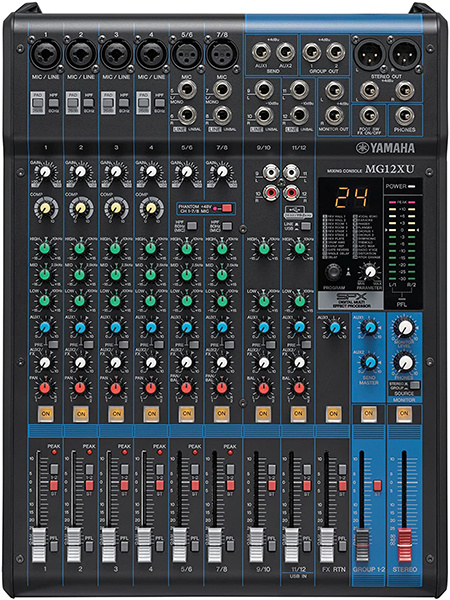

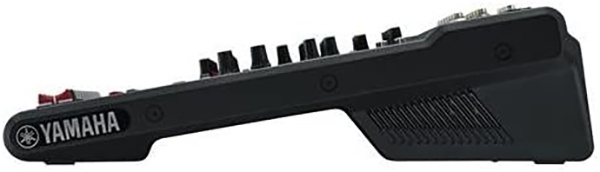

YamahaMixing Console MG12XU
