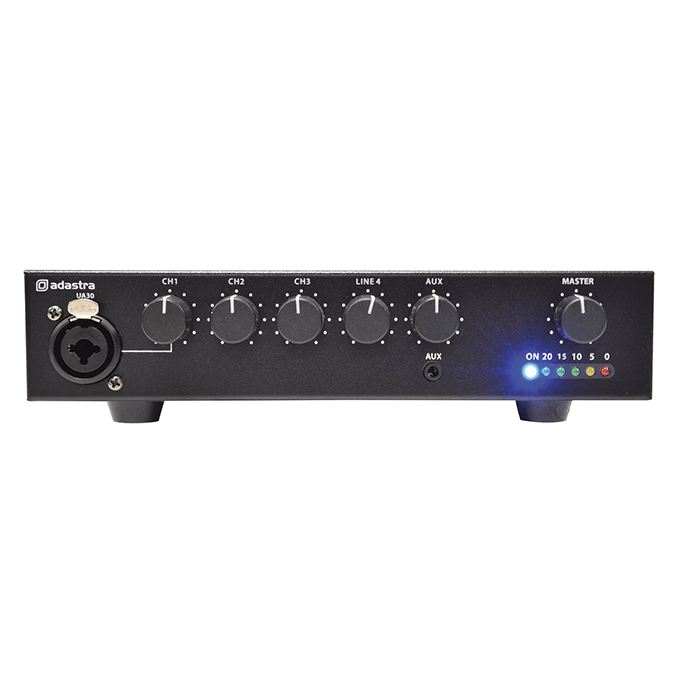

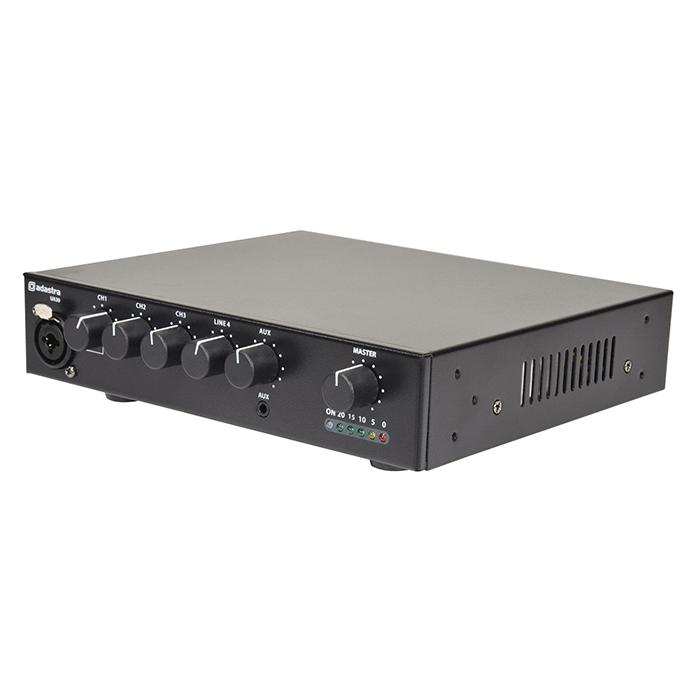

AdastraUA30 Compact 5ch 100V MixerAmp

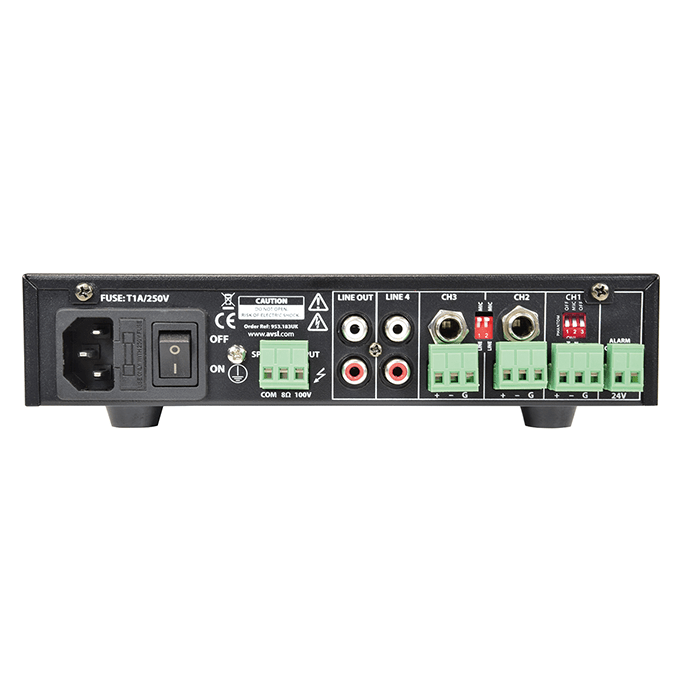

The Adastra UA30 is a small 5-channel mixer amplifier best suited for small or medium-sized PA systems. It offers 3 mic/line inputs, an RCA line input, and a 3.5mm Aux input, all of which have front panel volume controls and a master output control. It provides a single output, suitable for 100V line systems or 8-ohm speakers and the rear screw terminal allows for simple setup. Channel 1 provides regulated +20V phantom power for condenser microphones. The UA30 includes a mute input for connecting a 24-volt fire alarm and comes with rack-mounting equipment. It can be mounted anywhere convenient, such as on a wall or under a counter adjacent to other units. Public venues like schools, offices, shops, and similar spaces can benefit from this audio equipment.
SPECIFICATIONS
Output Power RMS | 30W |
Dimensions | 249 x 210 x 44mm |
Weight | 2.35kg |
Power Supply | 170-264Vac, 50Hz (IEC) |
Amplifier Construction | Class D + transformer output |
Inputs | Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm) |
Phantom Power | +20V CH1 (XLR or rear terminals) |
Line Output | 2 x RCA (mono) |
Speaker Output | Euroblock terminals: 100V / 8 Ohms / Com |
Mute | 24V relay contacts |
THD | <0.4% @ 1kHz |
Input Impedance | 1k Ohms (mic/line) |
Input Sensitivity | -10dB (line), -45dB (mic) |
SNR | 80dB (line), 75dB (mic) |
Frequency Response | 100Hz - 18kHz |
