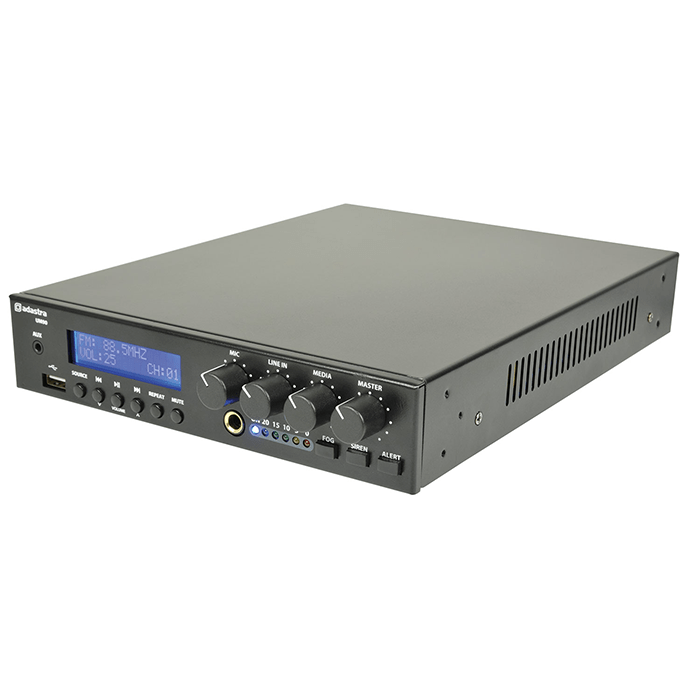

AdastraUM90 Compact 100V Mixer-Amp
Trade-ins Welcome
Beginner to Pro Friendly
Fast & Reliable Delivery
Secure Online Shopping
Description
Read moreRead less

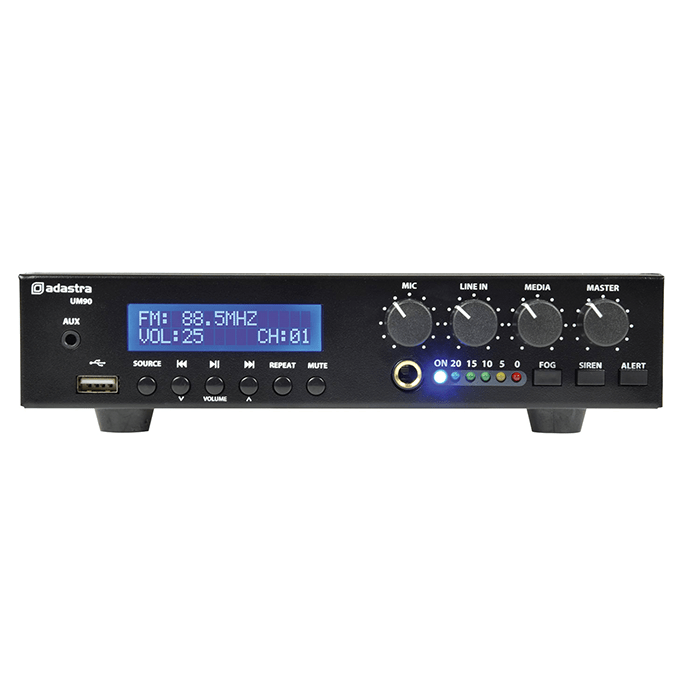

The Adastra UM90 is a small yet powerful amplifier for use with small to medium sound systems. There is a mic input, a line input, and a built-in USB player, FM radio, and Bluetooth on the front panel. This amp has a Class D design, and it can direct mono sound to 100V or 8-ohm speakers via the rear terminals. Bluetooth pairing is quick and easy because every frequency is unique. The size is ideal for close space, and the brackets are included to place two units side-by-side in a 1U rack. Ideal for offices, shops, restaurants, and meeting rooms.
SPECIFICATIONS
| Weight | 3.02kg |
| Dimensions | 300 x 210 x 44mm |
| Alarm Output | Fog, siren & alert generator |
| Output Power : RMS | 90W (80W @ 24Vdc power) |
| Power Supply | 170-264Vac, 50Hz (IEC) or 24Vdc |
| Amplifier : Construction | Class D + transformer output |
| Audio Source | Internal USB/FM/BT player |
| Bluetooth Version | 5.0 |
| Inputs | 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) |
| Line Output | 2 x RCA (mono) |

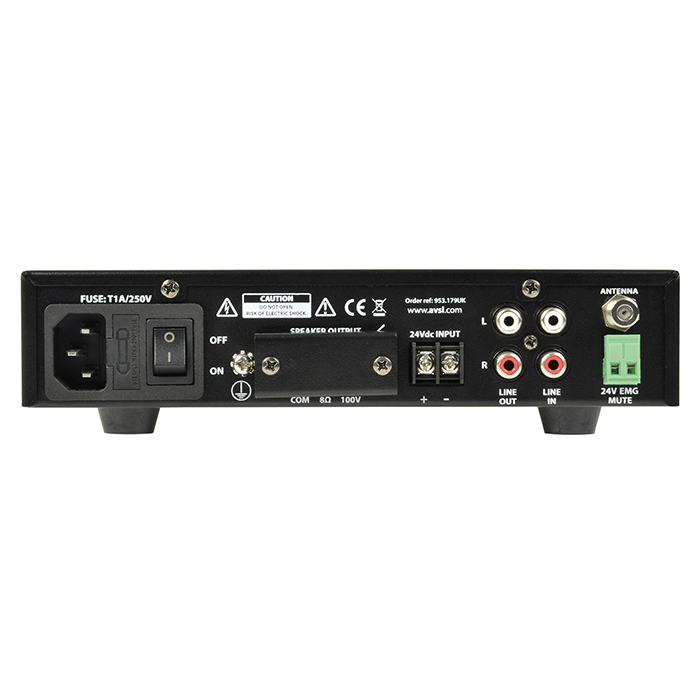

| Speaker Outputs | Screw terminals - 100V / 8 Ohms / Com |
| DC Power | 24Vdc screw terminals |
| Mute | 24V relay contacts |
| THD | <0.4% @ 1kHz |
| Input Impedance | 1k Ohms (mic/line) |
| Input Sensitivity | -10dB (line), -45dB (mic) |
| SNR | 80dB (line), 75dB (mic) |
| Frequency Response | 100Hz - 18kHz |
