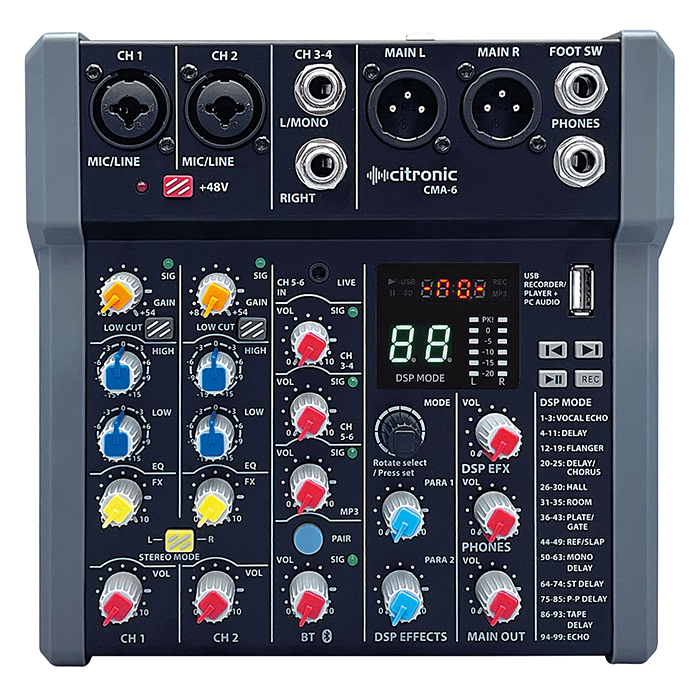

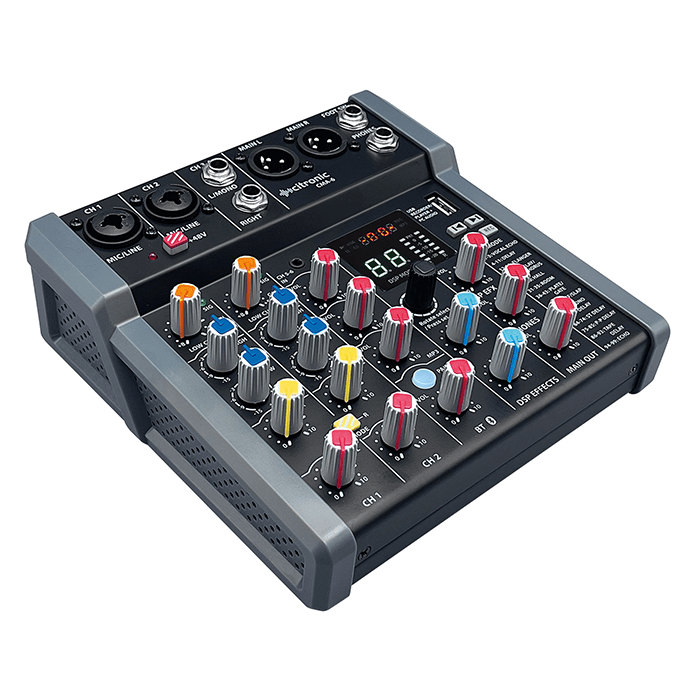

The Citronic CMA-6 mixer can be easily carried and has 2, 4, or 6 mono channels for simple operation. The channel inputs are XLR/jack, and you can change the gain, turn on phantom power, and use an EQ. It is possible to use mono channels in stereo pairs. You can also use stereo and minijack input with the sound card. The DSP effects engine has 99 different presets you can switch with a foot control, including options for delay and reverb. Music can be played wirelessly using Bluetooth, and MP3 files can be played, recorded, or used with a PC or Mac as an audio interface using the USB port. Low-noise, clear sound comes from balanced XLR outputs. Being supplied with a USB type-C cable and a padded bag, it is the perfect audio interface for gigs, showing and studio recording.
SPECIFICATIONS
Weight | 0.875kg |
Dimensions | 183 x 182 x 60mm |
Inputs | 2 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm |

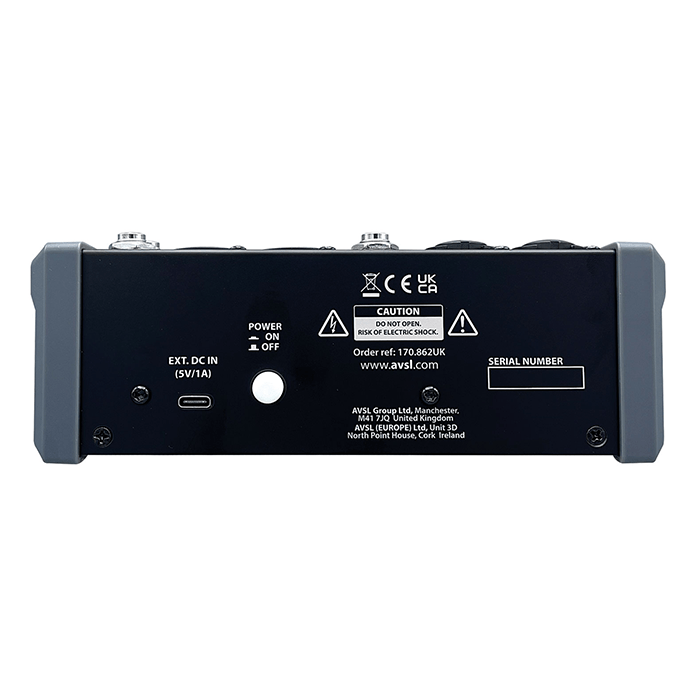

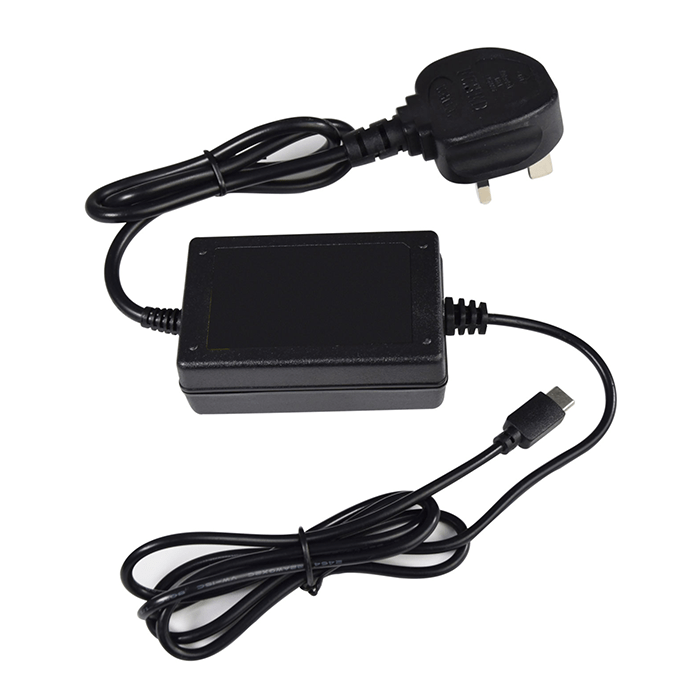

Power Supply | 5Vdc 1A min. (USB-C adaptor included) |
Power Consumption Max. | 5W |
Effects | 99 program DSP (2 parameter controls) |
DSP Sample Rate | 48kHz (24-bit) |
Audio Source | Bluetooth receiver, USB mp3 player/recorder |
Bluetooth Version | v5.1 (+BR+EDR+BLE) |
USB Version | v1.1 audio (mp3/wav/ape/flac) |
EQ: Low | ±15dB @ 80Hz |
EQ: High | ±15dB @ 12kHz |
Phantom Power | +48V switchable in pairs (XLR inputs only) |
Frequency Response | 20Hz - 22kHz (±1dB) |
Input Level | Mic +10dBu max. / Line +22dBu max. |
Input Impedance | Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm |
THD +N | <0.05% @ 1kHz |
Noise | EIN -122dBu (22Hz - 22kHz) |
CMRR | >75dB (Mic 1kHz) |
Sensitivity | XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu |
Crosstalk: Stereo | >80dB (1kHz fader shutoff) |
Outputs | Left + Right balanced XLR, Headphones 6.3mm jack |
Max. Output Level | XLR +22dBu, TRS +20dBu |
