Description
Read moreRead less

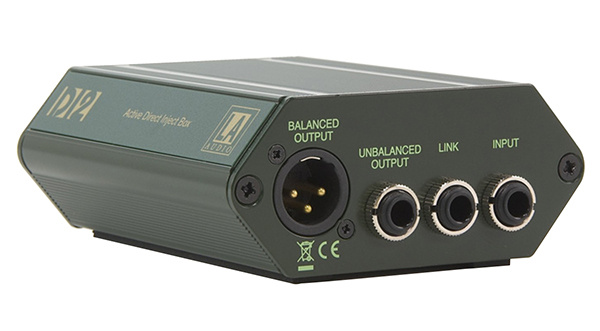

The La Audio D12 Active Di Box converts instrument or speaker signals to clean, balanced output. It features gain switches for precise level control, input switching for different sources, and a ground lift to reduce noise. The link output allows easy connection to additional gear. The unit can be powered by two 9V batteries or phantom power. Its robust design and LED indicator ensure reliability.
SPECIFICATIONS
| Frequency Response | +4, -2dB, 20Hz to 20kHz |
| Signal to Noise Ratio | -9dBu, 0dB switch position | -86dBu, +20dB switch position |
| Distortion | <0.1%, 1kHz, 0dB switch position |
| Input Impedance | 1M Ohm, Normal switch position | 10k Ohm, Pad switch position |
| Output load (recommended) | >300 Ohm, balanced output | >2k Ohm, unbalanced output |
| Power requirements | 15V to 48V, Phantom power | 1mA, Phantom power current |
| Output XLR Pin Assignment | Pin 1 = Gnd, Pin 2 = Hot (signal+), Pin 3 = Cold (Signal-) |
