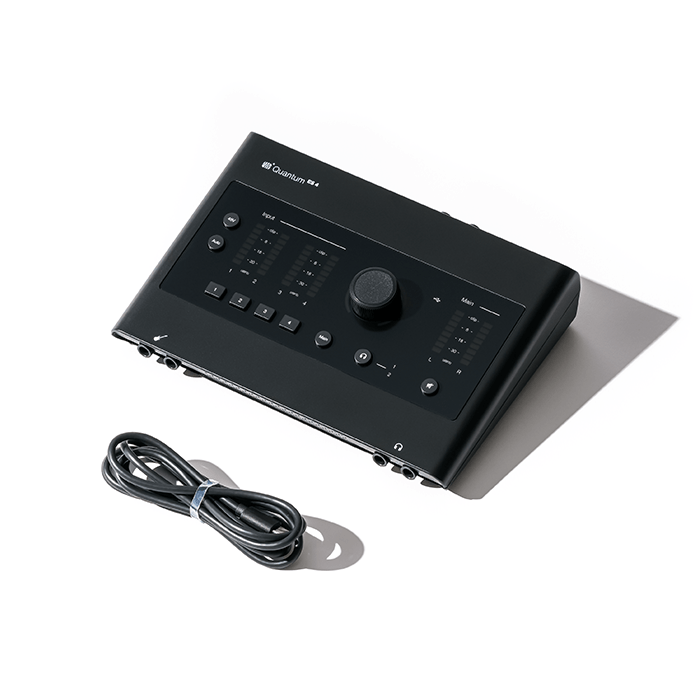

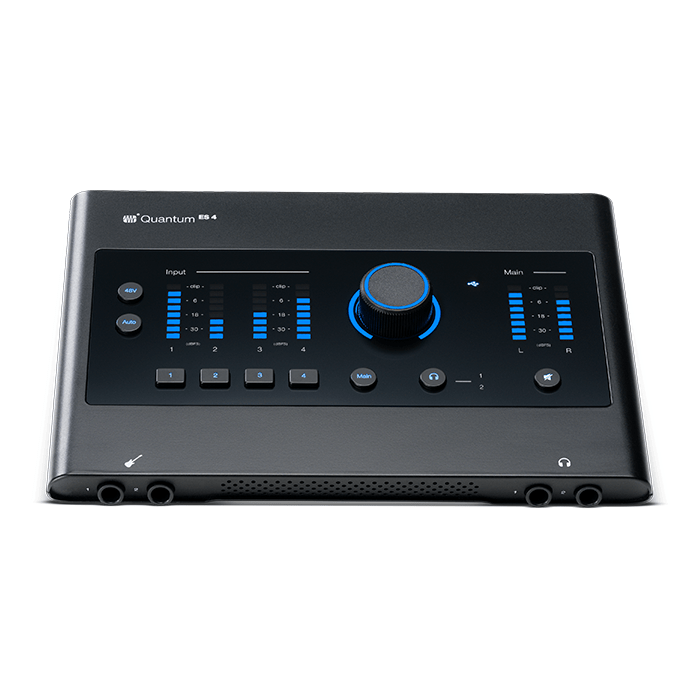

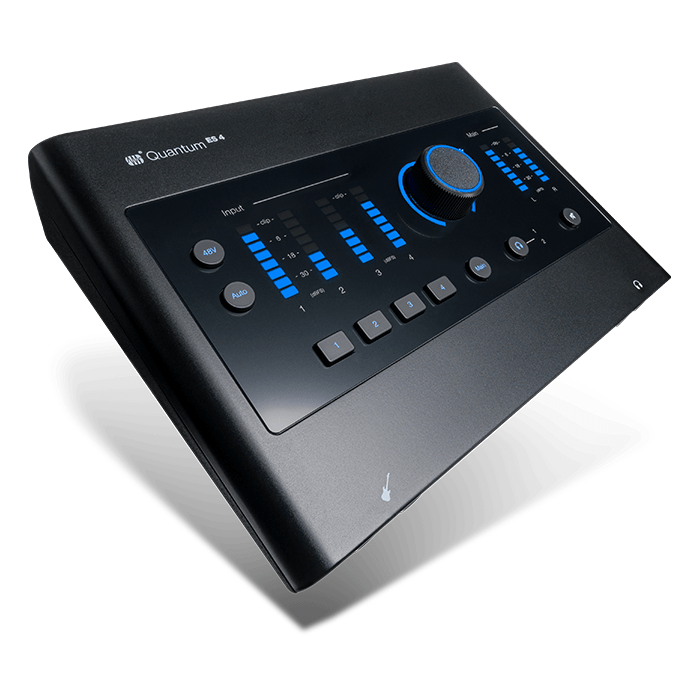

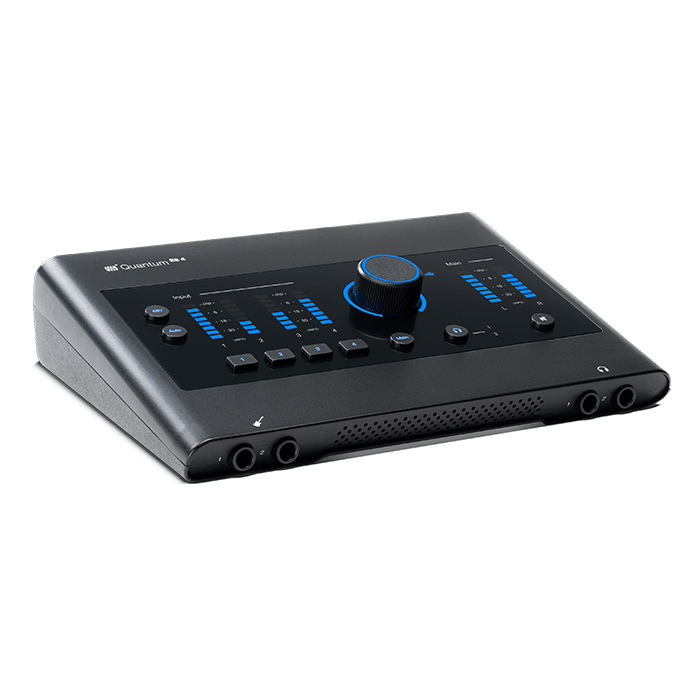

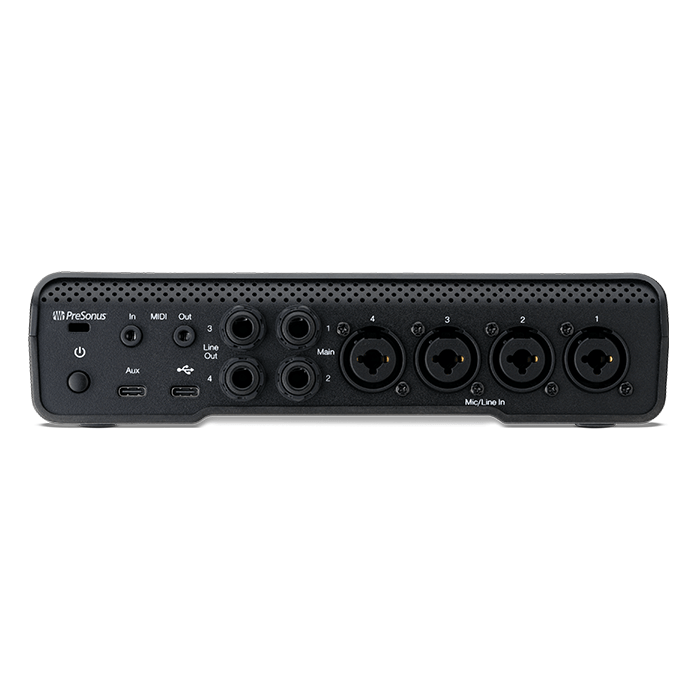

The PreSonus Quantum ES 4 is a powerful 4-in/4-out USB-C audio interface designed for musicians, content creators, and producers who want studio-quality sound at home or on the go. It features four MAX-HD mic preamps with up to +75 dB of clean gain, making it a perfect match for modern low-output microphones.
SPECIFICATIONS
| Product Name | Quantum ES 4 USB-C Audio Interface |
| Series | Quantum |
| Color | Black |
| Included Accessories | 1.5M USB-C to USB-C cable |
| Connectivity | USB-C® |
| Headphone Jack | Two - 1/4" TRS Female Stereo |
| Phantom Power | +48 VDC |
| Digital Audio | Bit Depth: 24-bit Dynamic Range: 120 dB Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 (kHz) |
| Instrument Inputs | Dynamic Range: 111 dB (A-Weighted) Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB Gain Range: 75 dB Max Level: +15 dBu (Unbalanced) |
| Line Inputs | Dynamic Range: 114 dB (A-Weighted) Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB Gain Range: +/- 10 dB Impedance: 10K Ohms Max Level: +15 dBu (Balanced) THD: 0.001% (1 kHz) |
| Microphone Preamp | Connection Type: XLR Female (Combo), Balanced Dynamic Range: 113 dB (A-Weighted) EIN: -129 dBu Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB Gain Control Range: 75 dB Input Impedance: 1600 Ohms Max Input Level: +14 dBu THD: 0.001% (1 kHz) |
| Headphone Outputs | Dynamic Range: 111 dB (A-Weighted) Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB Impedance Working Range: 22 Ohms Max Output: 7.5 dBu (50 Ohms) THD: 0.02% (1 kHz) |
| Line & Main Outputs | Connection Type: 1/4" TRS Female Dynamic Range: 117 dB (A-Weighted) Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB Max Level: +15 dBu (Balanced) Output Impedance: 51 Ohms THD: 0.001% (1 kHz, +4 dBu) |
| Product Dimensions | Width: 8.4" (213 mm) Depth: 6.2" (158 mm) Height: 1.9" (48.3 mm) |
| Product Weight | 1.8 lbs. (0.82 kg) |
