Description
Read moreRead less

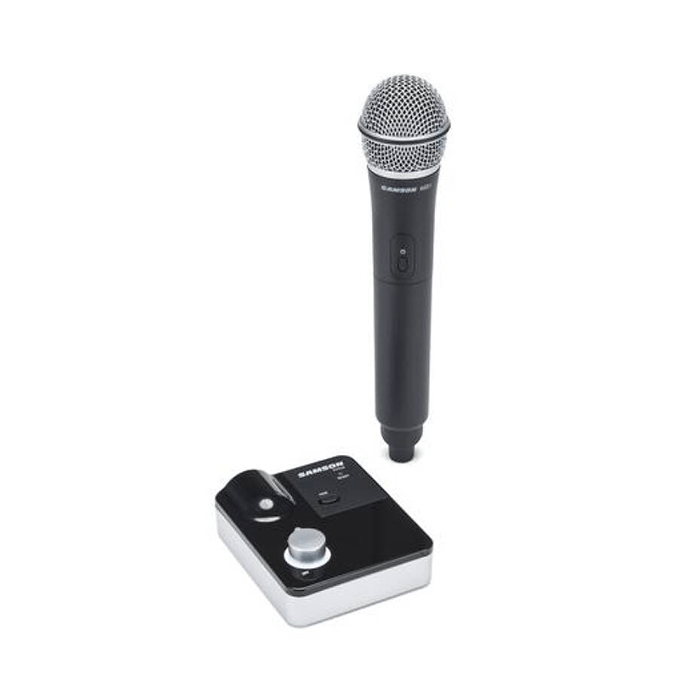

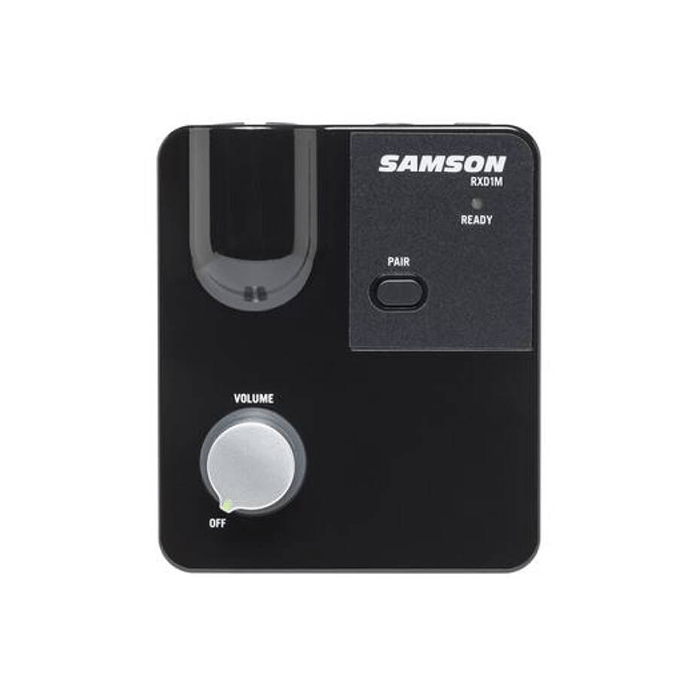

The Samson Stage XPDm Handheld System makes wireless audio simple and reliable. It uses a 2.4 GHz digital signal for clear, uncompressed sound. The HXD1 handheld transmitter delivers 20 hours of battery life, a 100’ range, and a shock-mounted capsule for noise-free vocals. The RXD1M receiver is lightweight and supports XLR, 1/4", and 1/8" outputs for easy setup.
FEATURES
- High performance digital wireless system
- Operates on 2.4GHz License-free frequency
- 100’ (30m) line-of-sight operating range
- Q6 Dynamic Microphone capsule
- Offers up to 20 hours of battery life using two AA batteries

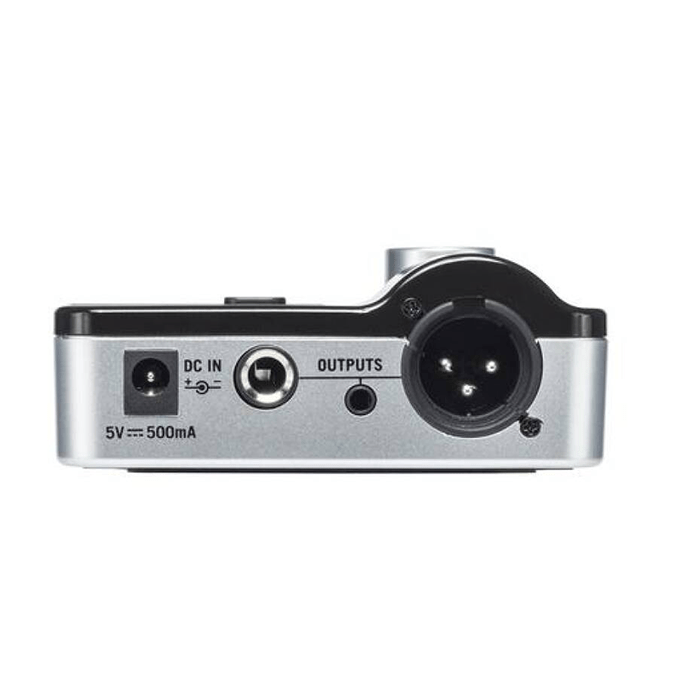

- Balanced XLR, unbalanced 1/4” and unbalanced 1/8” outputs
- One-touch pairing button
- Rotary volume knob with integrated power switch
SPECIFICATIONS
| Simultaneous Systems | 2 |
| Working Range | 100’ line of sight |
| Working Frequency | 2.404~2.476 GHz |
| Modulation Type | GFSK |
| Audio Frequency Response | 20Hz–16KHz |
| T.H.D | <0.1% (at 1 kHz, -10 dBu) |
| Signal to Noise | >85 dB |
| Microphone Element | Q6 Dynamic |
| RF Power | <10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 20 hours |
| Audio Sample Rate | 32 kHz |
| Dimensions (Microphone) | 10.2” x ø2.1” / 260 mm x ø54 mm |
| Weight (Microphone) | 0.5 lb / 218 g |
| Audio Output Level 1/8” & 1/4” jack (unbalanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Level XLR jack (balanced) | +4 dBu, 1 kHz, <0.6% THD+N |
| Audio Output Impedance 1/8” & 1/4” jack (unbalanced) | 110 ohms @ 1 kHz |
| Audio Output Impedance XLR output jack (balanced) | 2.4 kΩ @ 1 kHz |
| RF Sensitivity | -78 dBm / 20 dB SINAD |
| Image Rejection | >50 dB |
| Operating Voltage | 5VDC 500 mA |
| Dimensions (Receiver) | 4.3” x 3.7” x 1.5” / 110 mm x 95 mm x 39 mm |
| Weight (Receiver) | 0.33 lb / 152 g |
